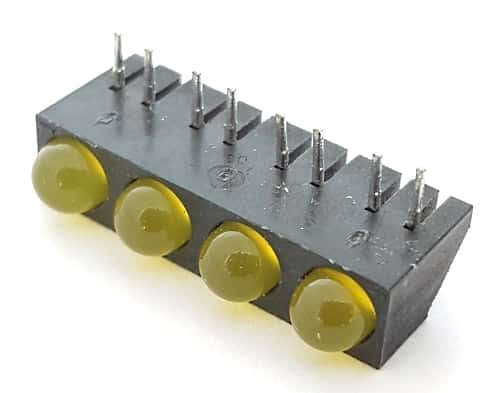

Yellow 5mm Quad LED Circuit Board Indicator Light Bar Lumex SSF-LXH400YD

Yellow 5mm Quad LED Circuit Board Indicator Light Bar Lumex SSF-LXH400YD

Manufacturer: Lumex
Part Number: SSF-LXH400YD
Amps: .02
Voltage: 2.1
Watts: .0625
Mounting: PCB
Lead/Terminal Type: PCB Pin
Number Leads/Terminals: 8
Color: Yellow
Temperature: 85
Shape: Rectangle
Termination Method: Solder
Size (mm): 5
Luminous Intensity (mcd): 585

Price: $1.25
250 available for immediate delivery
Code: LED267APQ08
Weight: 0.10oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Quad LED High Efficiency CBI Display Bar
PCB Mount

LED Size: 5mm (T-1 3/4) x 4
LED Shape: Round Domed Top
Lens Color: Yellow
Lens Transparency: Diffused
Mounting: Right Angle

Maximum Ratings
Power Dissipation: 105mW
Peak Forward Current: 150mA
Continuous Current: 30mA
Operating Temperature: -40 to 85 Degrees C

Electrical/Optical Specs
Peak Wavelength: 585nm
Millicandela Rating: 20mcd
Forward Voltage: 2.1V
Reverse Voltage: 5.0V
Viewing Angle: 60 Degrees

Holder Dimensions:
Length: 25.4mm (1.0")
Height: 5.0mm (0.236")
Depth: 9.2mm (0.362")
Centerline Height: 5.08mm (0.20")

Manufactured by: Lumex
Part Number: SSF-LXHH400YD

Full Datasheet: Lumex Yellow Right Angle T1-3/4 LEDs CBI 4 Wide
