Yellow PCB LED Strip LINEARLightFlex Reel Osram OS-LM11A-Y1

Yellow PCB LED Strip LINEARLightFlex Reel Osram OS-LM11A-Y1

Manufacturer: Osram
Part Number: OS-LM11A-Y1
Amps: 2.85
Voltage: 10
Watts: 22.5
Mounting: Surface Mount
Color: Yellow
Temperature: 80
Luminous Intensity (mcd): 290

Price: $25.00
3 available for immediate delivery
Code: LED275APR04
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

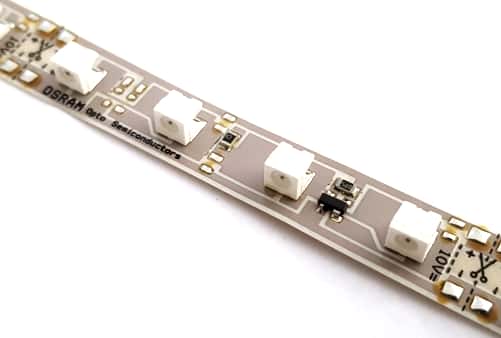

LINEARLight Flex LED-module Strip
LED strip on 10mm wide flexible printed circuit board with self-adhesive back.
Entire Strip (reel) has 300 yellow LEDs

Features:
- LED spacing: 14mm
- Low profile (<5mm) allows installation where space is limited
- PCB can be sub divided into smaller units without damaging the remaining module
- OSRAM SIDELED allows high luminous flux
- Low heat generation
- Minimum Bending Radius: 2.0cm

Nominal Wavelength: 587nm
Sprectral Bandwidth: 25.0nm
Luminous Intensity: 290mcd
Luminous Flux: 585mlm
Viewing Angle: 120 Degrees
Operating Voltage: 10V
Operating Current in total: 2.15A
Operating Current of 10 LEDs: 30mA
Power Consumption in total: 22.5W
Power Consumption of 10 LEDs: 0.31W

Dimensions:
Length of entire PCB= 4200 mm
Maximum length of PCB with power feed at one end = 2072 mm
Length of smallest unit ( 4 LED) = 56 mm

Applications:
- Backlighting of diffused glasses in Light Advertisement
- Border Marker
- Indirect illumination

Manufactured by: Osram
Part Number: OS-LM11A-Y1

Full Datasheet: SMD Yellow Linear PCB LED-module Display 587nm
