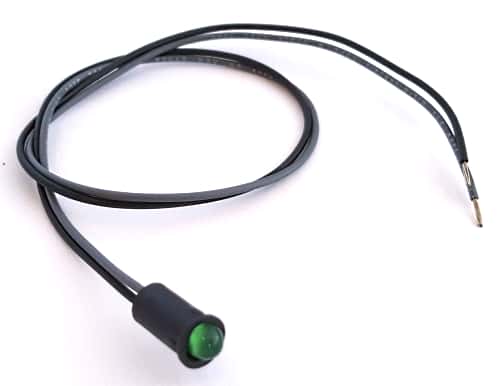

Green 5mm Panel Mount LED Light Assembly Wilbrecht Ledco® L51-9103

Green 5mm Panel Mount LED Light Assembly Wilbrecht Ledco® L51-9103

Manufacturer: Wilbrecht Ledco®
Part Number: L51-9103
Voltage: 2.2
Package: T-1 3/4
Mounting: Panel Mount
Lead/Terminal Type: Wire
Number Leads/Terminals: 2
Color: Green
Shape: Round
Size (mm): 5
Luminous Intensity (mcd): 5.6

Price: $1.25
170 available for immediate delivery
Code: LED284APT05
Weight: 0.12oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Panel Mount LED Indictaor Lights

Features:
- Front mounting, snap-in—no mounting hardware required
- Simplified one-piece construction

Color: High Efficiency Green
LED Size: 5.0mm (T-1 3/4)
Panel Thickness: 0.767mm to 1.574mm (0.031" to 0.062")
Mounting Hole: 6.35mm (0.250")

Voltage (@ 20mA): 2.2 V
Luminous Intensity (@ 10mA): 5.6 mcd
Peak Wavelength: 565 nm
Viewing Angle: 60°

Dimensions (excluding wires):
Overall Length: 13.85mm (0.545")
Diameter: 7.14mm (0.281")
Wire Length: 304.8mm (12.0")
Wire Size: 22.0 AWG

Manufactured by: Wilbrecht Ledco Inc.® (acquired by Microprecision Electronics®)
Part Number: L51-9103-12

Full Datasheet: L51 Series Front Mount LED Lamp Assembly Green
