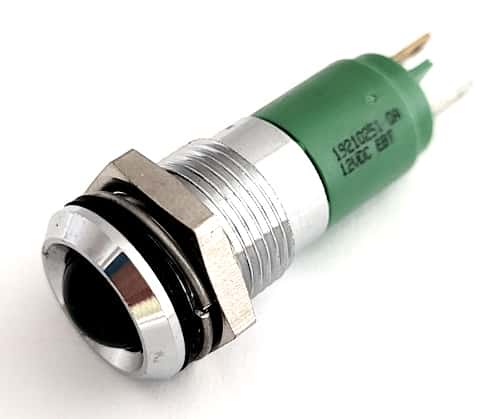

Green 12V Panel Mount LED Indicator Light Wamco® WL-19210251

Green 12V Panel Mount LED Indicator Light Wamco® WL-19210251

Manufacturer: Wamco®
Part Number: WL-19210251
Amps: .02
Voltage: 12
Mounting: Panel Mount
Lead/Terminal Type: Blade
Number Leads/Terminals: 2
Color: Green
Temperature: -20 to 60°C
RoHS Compliant: Yes
Size (mm): 14 (mounting hole)
Luminous Intensity (mcd): 80

Price: $7.00
24 available for immediate delivery
Code: LED295APW04
Weight: 0.50oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Green Panel Mount LED Lights
Includes Mounting Hardware (Gasket, Spring Washer, M14 Nut)

Features:
- Standard Satin Chrome Bezel
- DC Operation ONLY
- IP67 Rated

Voltage: 12.0V
Current: 20mA
Luminous Intensity: 80mcd
Dominant Wavelength:568nm
Temperature: -20 to 60°C

Dimensions
Overall Length: 46.0mm (
Terminal Size: 2.8mm x 0.8mm
Mounting Hole Diameter: 14.0mm
Panel Thickness: 10.0mm

Manufactured by: Wamco®
Part Number: WL-19210251

Full Datasheet: Wamco® 2 Pin 80mcd Green LED Lamp

RoHS Compliant
