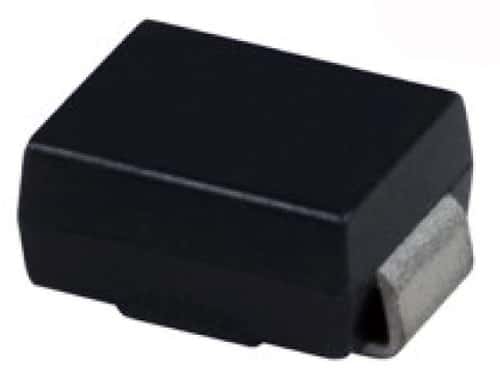

TVB200SA 150A 200V Surface Mount Thyristor Raychem

TVB200SA 150A 200V Surface Mount Thyristor Raychem

Manufacturer: Raychem
Part Number: TVB200SA
Capacitance (uF): .00005
Amps: 150
Voltage: 200
Package: DO-214AA
Mounting: Surface Mount
Number Leads/Terminals: 2
Color: Black
Temperature: 125
RoHS Compliant: Yes
Shape: Rectangle

Price: $0.25
10000 available for immediate delivery
Code: N058APN05
Weight: 0.01oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

SMT Thyristor Surge Protectors
SiBar Series

Ratings @ 25ยบ C (Both Polarities)
Off-State Voltage (max. @ ID=5uA): 200V
Non-Repetitive Peak Impulse Current (10x1000 usec): 50A
Critical Rate of Rise of On-State Current: 150 A/us

Electrical Characteristics
Breakover Voltage: 320V max.
Off-State Current (VD1= 50V): 2.0uA max.
On-State Voltage (IT=1A): 5.0V
Breakover Current: 230mA
Holding Current: 175mA min.
Capacitance(f=1.0 Mhz, 2VDC bias, 15mVrms): 50pF
Operating Temperature Range: -40 to 125 deg. C

Dimensions (max): 4.57mm x 3.81mm x 2.41mm (0.18" x 0.15" x 0.095")

Manufactured by: Raychem
Part Number: TVB200SA

Full Datasheet: Raychem SiBar Series SMD Tyristor TVB200SA

RoHS Compliant
