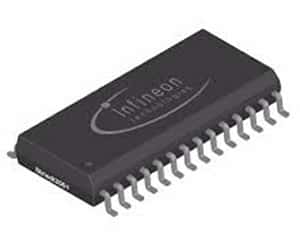

BTS5434G SMT High Side Power Switch IC Infineon

BTS5434G SMT High Side Power Switch IC Infineon

Manufacturer: Infineon
Part Number: BTS5434G
Amps: 3.4
Voltage: 4.5 - 28
Watts: 1.7
Ohms: .045
Package: SOIC
Mounting: Surface Mount
Number Leads/Terminals: 28
Color: Black
Temperature: 150
RoHS Compliant: Yes
Shape: Rectangle
Termination Method: Solder

Price: $8.00
1250 available for immediate delivery
Code: N062APN05
Weight: 0.10oz ONZ
Volume Pricing
Quantity Price Each
1-9$8.00
10-99$7.00
100+$6.00
