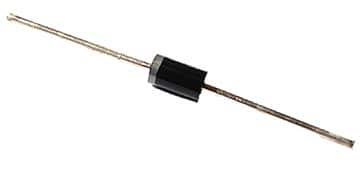

1N6288ARL4 1.5KE51AG 1500W 51V Zener TVS Diode Mosorb ON Semiconductor

1N6288ARL4 1.5KE51AG 1500W 51V Zener TVS Diode Mosorb ON Semiconductor

Manufacturer: ON Semiconductor
Part Number: 1N6288ARL4
Voltage: 51
Watts: 1500
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Black
Temperature: 175
RoHS Compliant: Yes
Shape: Round (Cylindrical)
Termination Method: Solder

Price: $0.50
1475 available for immediate delivery
Code: N063APN05
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.50
10-99$0.46
100+$0.30

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Transient Voltage Suppressor Diode
Uni-Directional
Axial Leads

Features
- Peak Power 1500 Watts @ 1 ms
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- Maximum Clamp Voltage @ Peak Pulse Current
- Low Leakage < 5mA Above 10 V
- UL 497B for Isolated Loop Circuit Protection
- Response Time is Typically < 1 ns

Maximum Ratings
Peak Power Dissipation: 1500W
Steady State Power Dissipation: 5.0W
Thermal Resistance, Junction−to−Lead: 20 deg. C/W
Forward Surge Current: 200A
Operating and Storage Temperature Range: -65 deg. C to 175 deg. C

VRWM: 43.6V
IR @ VRWM: 5.0uA
Breakdown Voltage @ 1.0mA
- 48.5V (min.)
- 51.0V (typ.)
- 53.6V (max.)
VC @ IPP: 70.1V @ 21.4A

Manufactured by: ON Semiconductor
Part Number: 1N6288ARL4

Full Datasheet: ON Semi Suppession Diode 1500W 51.0V 1N6288ARL4

RoHS Compliant
