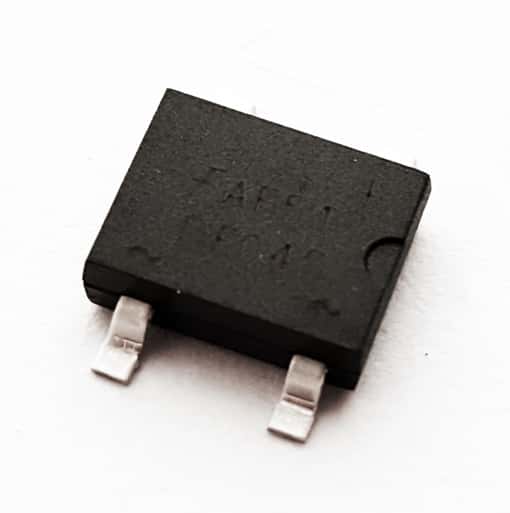

1.5A 400V SMT Bridge Rectifier DF04S Fairchild

1.5A 400V SMT Bridge Rectifier DF04S Fairchild

Manufacturer: Fairchild
Part Number: DF04S
Capacitance (uF): .000025
Amps: 1.5
Voltage: 400
Watts: 3.1
Package: SDIP
Mounting: Surface Mount
Lead/Terminal Type: Gull Wing
Number Leads/Terminals: 4
Color: Black
Temperature: 150
RoHS Compliant: Yes
Shape: Rectangle
Termination Method: Solder

Price: $0.50
1473 available for immediate delivery
Code: N067APN05
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.50
10-99$0.40
100+$0.27

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Surface Mount Bridge Rectifiers

Features:
- Surge overload rating: 50 amperes peak.
- Glass passivated junction.
- Low leakage.
- UL certified, UL #E111753 and E326243.

Maximum Ratings:
Maximum Repetitive Reverse Voltage: 400V
Maximum RMS Bridge Input Voltage: 280V
DC Reverse Voltage (Rated VR): 400V
Average Recitified Forward Current: 1.5A
Non-Repetitive Peak Forward Surge Current (8.3ms Single Half-Sine-Wave): 50.0A
Operating Junction Temperature: -55 deg. C to 150 deg. C

Power Dissipation: 3.1W
Forward Voltage, per element @ 1.0A: 1.1V
Reverse Current, per element @ rated VR (TA=25 deg. C): 5.0uA
Total Capacitance, per leg: 25.0pF T

Manufactured by: Fairchild
Part Number: DF04S

Full Datasheet: DF04S SMD Bridge Rectifier

RoHS Compliant
