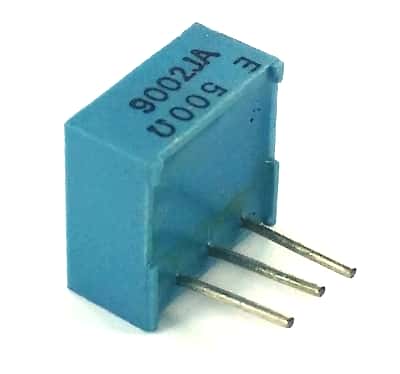

500 ohm Variable Resistor Trimpot Murata POT3104E-1-501

500 ohm Variable Resistor Trimpot Murata POT3104E-1-501

Manufacturer: Murata
Part Number: POT3104E-1-501

Price: $0.65
180 available for immediate delivery
Code: P157PD
Volume Pricing
Quantity Price Each
1-9$0.65
10-99$0.63
100+$0.60

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$36.95
$45.01
$90.00
$45.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information


Trimmer Potentiometers
500 ohm
10%
Top adjust
Single Turn
Sealed Cermet
Square
9.6mm package
In Line Leads
UL94V-0 Flammability

Rating:
Standard Resistance Range: 10 ohm to 2M ohm
Power rating: 0.5W 70°C
Max Working Voltage: 300Vdc
Max Wiper Current: 100mA max.
Effective Rotational Angle: 280° +/- 15°
Residual Resistance: 2 ohm max
Contact Resistance Variation: 1% or 1 ohm max (whichever is greater)
Dielectric Strength: 900Vac
Insulation Resistance: 100M ohm min (500Vdc)
Torque: 35.3mNm (360gh-cm) max
Stop Strength: 68.6mNm (700gf-cm) min

Applications:
TV's
HDTV's
Fax machines
Professional Cameras
CPU's
Switching power supplies

Manufactured by: Murata
Part number:POT 3104E-1-501
