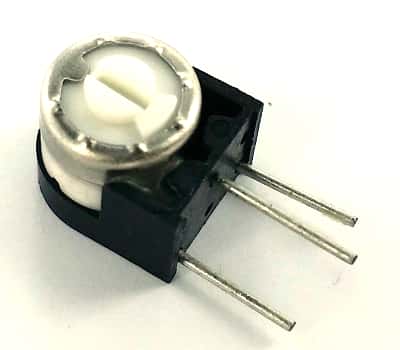

2M ohm Trimpot Variable Resistor Murata POT3321N-1-205
Price: $0.50
395 available for immediate delivery
Code: P193PD
|
Additional Information
Trimmer Potentiometers
2M ohm
20%
Vertical mount
Side adjust
Single Turn
Sealed Cermet
Round
6.6mm package
UV94V-0 Flammability
Rating:
Standard Resistance Range: 10 ohm to 5M ohm
Power rating: 0.5W 70°C
Max Working Voltage: 300Vdc
Max Wiper Current: 100mA max.
Effective Rotational Angle: 230° +/- 5°
Residual Resistance: 2 ohm max
Contact Resistance Variation: 3% or 3 ohm max (whichever is greater)
Dielectric Strength: 600Vac
Insulation Resistance: 1000M ohm min (500Vdc)
Torque: 19.6mNm (200gh-cm) max
Stop Torque: 49mNm (500gf-cm) min
Applications:
Fax machines
TV's
HDTV's
CPU's
Professional Cameras
Printers
Switching Power Supplies
Manufactured by: Murata
Part number: POT 3321N-1-205
