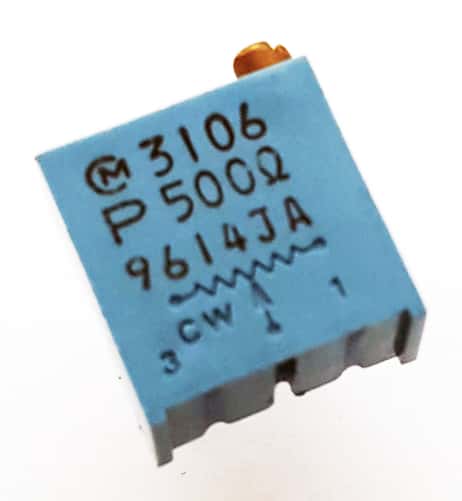

500 Ohm Trimmer Potentiometer Variable Resistor Murata POT3106P-1-501

500 Ohm Trimmer Potentiometer Variable Resistor Murata POT3106P-1-501

Manufacturer: Murata
Part Number: POT3106P-1-501
Voltage: 300
Watts: .5
Ohms: 500
Tolerance (%): 10
Mounting: PCB
Lead/Terminal Type: Staggered
Number Leads/Terminals: 3
Color: Blue
Temperature: 125
Shape: Square
Termination Method: Solder

Price: $0.69
2000 available for immediate delivery
Code: P296APN11
Weight: 0.10oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.69
10-99$0.67
100+$0.65
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Trimming Potentiometers

These trimpots have a clutch mechanism that prevents excessive wiper rotation. They are also compatible with ultrasonic cleaning.

Features:
- Side Adjust
- Staggered Leads
- Sealed Cermet
- 25 Turns +/-5

Resistance: 500 ohm
Power Rating: 0.5W @ 70 Deg. C.
Tolerance: 10%
Max Working Voltage: 300Vdc
Max Wiper Current: 100mA max.
Residual Resistance: 2 ohm max
Contact Resistance Variation: 3% or 3 ohm max (whichever is greater)
Dielectric Strength: 1000Vac
Insulation Resistance: 1000M ohm min (500Vdc)

Dimensions: 10.0mm(W) x 9.5mm(L) x 5.1mm(T)

Applications:
- Measuring Instruments
- Fax machines
- CPU's
- Printers
- Sensors

Manufactured by: Murata
Part number: POT3106P-1-501

Full Datasheet: Murata 3106P Multi-Turn 9.5mm Square Trimpot 500 Ohm
