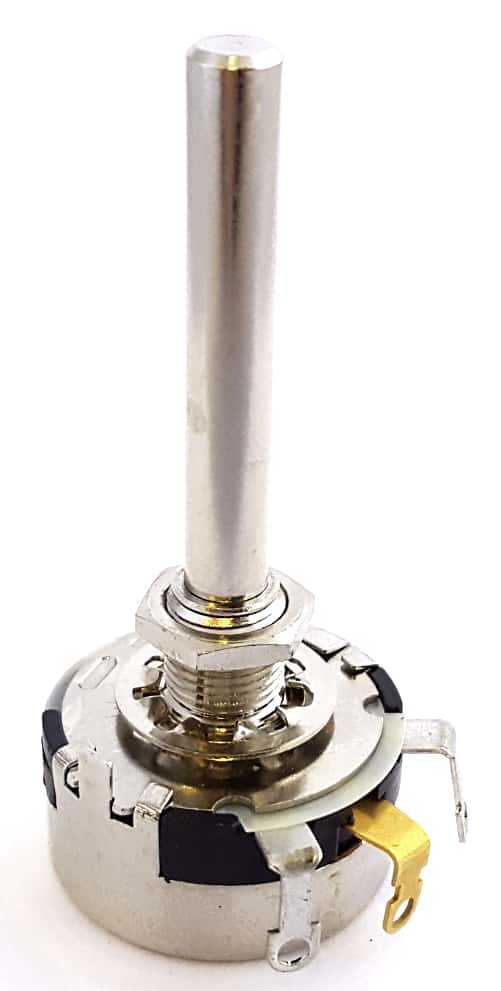

10K Ohm 2W Wirewound Linear Potentiometer Honeywell® 43C110K

10K Ohm 2W Wirewound Linear Potentiometer Honeywell® 43C110K

Manufacturer: Honeywell®
Part Number: 43C110K
Voltage: 310
Watts: 2
Ohms: 10,000
Tolerance (%): 5
Lead/Terminal Type: Solder Lug
Number Leads/Terminals: 3
Color: Silver
Temperature: 105
Obsolete: Yes

Price: $35.00
45 available for immediate delivery
Code: P305APR10
Weight: 1.77oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Industrial Potentiometers
Obsolete

Features:
- Nickel-plated brass shaft and bushings
- Wirewound element
- Linear taper
- Very stable over the operating temperature

Resistance: 10K Ohm
Power Rating: 2.0W
Tolerance: 5%
Working Voltage: 310V
Mechanical Rotation: 300°
Rotational Life: 10,000 cycles
Operating Temperature: -55 to 105°

Dimensions:
Body Diameter: 28.6mm (1.125")
Body Height: 13.95mm (0.55")
Bushing Thread (32 NEF-2A): 9.53mm (0.375")
Bushing Length: 9.53mm (0.375")
Shaft Diameter: 6.35mm (0.25")
Shaft Length: 50.8mm (2.0")

Applications:
- Manual controls
-Welding and heating

Manufactured by: Honeywell
Part Number: 43C110K

Full Datasheet: Honeywell 43 Series Industrial Potentiometer 10K ohm 2W 5%
