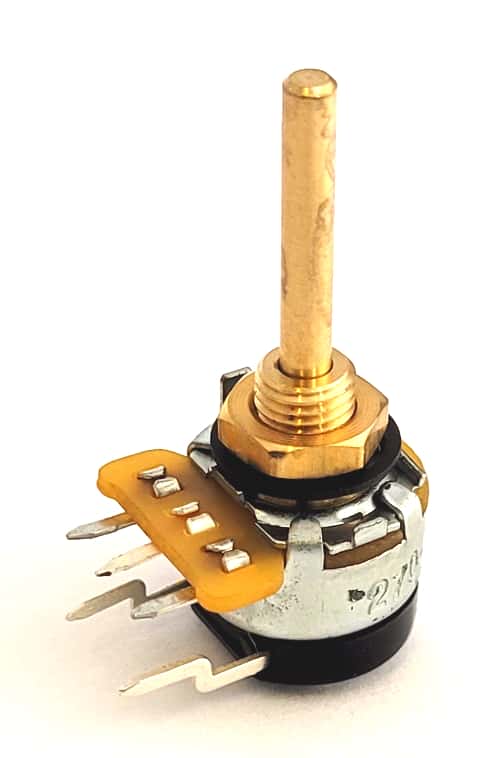

100K Ohm .25W SPST Linear Potentiometer CTS® 270X232A104B1B1

100K Ohm .25W SPST Linear Potentiometer CTS® 270X232A104B1B1

Manufacturer: CTS®
Part Number: 270X232A104B1B1
Watts: .25 (1/4)
Ohms: 100,000
Tolerance (%): 20
Mounting: PCB / Horizontal / Panel Mount
Lead/Terminal Type: PC Pin / Board Locks
Number Leads/Terminals: 3 + 2
Color: Silver / Gold
Temperature: -10 to 70°C
RoHS Compliant: Yes
Termination Method: Solder
Size (mm): 16

Price: $7.00
15 available for immediate delivery
Code: P341APV04
Weight: 0.30oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

SPST Carbon Composition Potentiometers

Features:
- Single Gang
- No Detent
- 10,000 Cycle Rotation Life
- PC Pin Terminals with Board Locks
- Horizontal Panel Mount

Taper: Linear
Switch Type: Rotary
Turns: Single
Rotation: 315°

Resistance: 100K Ohms
Power Rating: 250mW (1/4W)
Tolerance: 20%
Operating Voltage: 500Vdc
Dielectric Strength: 750 VAC for 1 min.
Temperature: -10 to 70°C

Dimensions
Overall Length: 40.5mm (1.60")
Body Diameter: 15.9mm (0.63")
Shaft Length: 25.4mm (1.0")
Shaft Diameter: 3.18mm (0.125")
Bushing Thread: 1/4-32

Manufactured by: CTS®
Part Number: 270X232A104B1B1

Full Datasheet: CTS® 270 Series Rotary Potentiometer 16mm

RoHS Compliant
