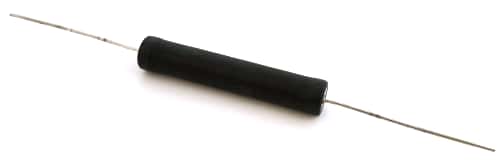

13W 680 ohm 5% Wirewound Resistor ATE Electronics® 10CS 680R 5%

13W 680 ohm 5% Wirewound Resistor ATE Electronics® 10CS 680R 5%

Manufacturer: ATE Electronics® (Italy)
Part Number: 10CS 680R 5%
Voltage: 940
Watts: 10
Ohms: 680
Tolerance (%): 5
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Black
Shape: Round (Cylindrical)
Termination Method: Solder

Price: $0.50
111 available for immediate delivery
Code: R087PD
