Clicky

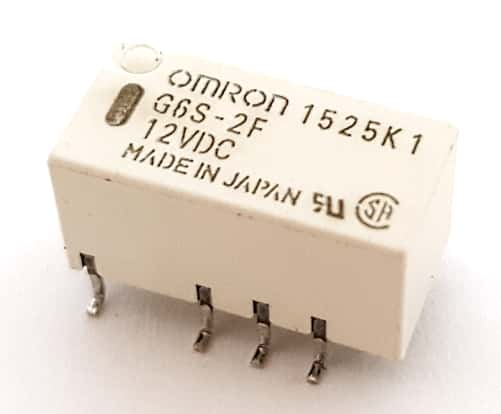

2.0A 12V Low Signal SMT PCB Mount Relay Omron® G6S-2F-12VDC

2.0A 12V Low Signal SMT PCB Mount Relay Omron® G6S-2F-12VDC

Manufacturer: Omron®
Part Number: G6S-2F-12VDC
Amps: 2
Voltage: 12
Watts: .14
Ohms: 1028
Mounting: Surface Mount
Lead/Terminal Type: Gullwing
Number Leads/Terminals: 8
Color: Off White
Temperature: -40 to 85°C
Shape: Rectangular
Termination Method: Solder
Size (mm): 14.8 x 7.3 x 9.2

Price: $4.50
104 available for immediate delivery
Code: REL009PE08
Weight: 0.10oz ONZ
Volume Pricing
Quantity Price Each
1-9$4.50
10-99$4.00
100+$3.50
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Electromagnetic Surface Mount Relays
DPDT
Non-Latching
Gull wing Terminals

Contact Data:
Rated Load: 0.5 A at 125 VAC; 2 A at 30 VDC
Max. Carry Current: 2A
Max. Operating: Voltage: 250 VAC, 220 VAC
Max. Operating Current: 2A
Max. Switching Capacity: 62.5 VA, 60W
Min. Permissible Load: 10µA, 10mV

Coil Data:
Rated Voltage: 12V
Rated Current: 11.7mA
Coil Resistance: 1028 ohm
Power Consumption: Approx. 140mW
Pick-up Voltage: 75% max. of Rated Voltage
Drop-out Voltage: 10% min. of Rated Voltage

Characteristics:
Contact Resistance: 75mOhm max.
Operate (set) Time: 4ms max. (mean value approx. 2.5ms)
Release(reset) Time: 4ms max. (mean value approx. 1.5ms)
Bounce Time: Approx. 0.5 ms
Insulation Resistance: 1000 MOhm min. (@ 500V)
Mechanical Service Life: 100,000,000 operations min.(@ 36,000 operations/hr)

Dimensions:
- Length: 0.58 in. (14.8mm)
- Width: .287 in. (7.3mm)
- Height: .362 in. (9.2mm)

Manufactured by: Omron
Part Number: G6S-2F-12VDC

Full Datasheet: G6S-2F-12VDC
