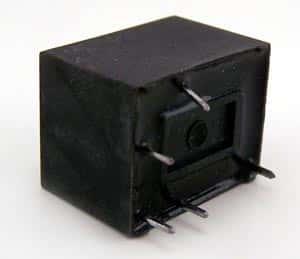

3A 120Vac Miniature PC Board Mount Relay AZ8-1C-9DE

3A 120Vac Miniature PC Board Mount Relay AZ8-1C-9DE

Manufacturer: Zettler
Part Number: AZ8-1C-9DE

Price: $1.50
111 available for immediate delivery
Code: REL020PD
Volume Pricing
Quantity Price Each
1-9$1.50
10+$1.40
