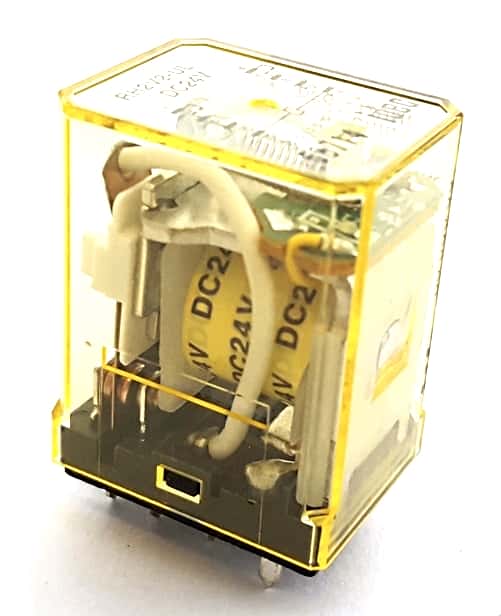

10A 24V DPDT Compact Power Relay IDEC Corp. RH2V2-ULDC24V

10A 24V DPDT Compact Power Relay IDEC Corp. RH2V2-ULDC24V

Manufacturer: IDEC Corporation
Part Number: RH2V2-ULDC24V
Amps: 10
Voltage: 24
Ohms: 650
Mounting: Through Hole
Lead/Terminal Type: PCB Pin
Number Leads/Terminals: 8
Temperature: 70
RoHS Compliant: Yes
Shape: Rectangle

Price: $8.00
160 available for immediate delivery
Code: REL053BPR04
Weight: 1.20oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Compact Power Relays
RH Series

Features:
- With Indicator and Diode (DC Coil Only)
- DPDT
- Non-Latching
- Smaller size to save space
- PCB Terminals (PCB terminal relays are designed to mount directly to a circuit board without any socket)

Coil Voltage: 24.0V
Rated Current: 36.9mA
Coil Resistance: 650 Ohm
Contact Resistance: 50 Milliohm (max)
Temperature: -25 to 70 Degrees C

CSA Ratings
Resistive: 10 A @ 240VAC, 120VAC, 30V DC
General Use:
- 7.5A @ 120VAC, 30V DC
- 7.0A @ 240VAC
Horse Power
- 1/3HP @ 240VAC
- 1/6HP @ 120VAC

Dimensions
Height: 35.6mm (1.40")
Width: 27.5mm (1.08")
Depth: 21.0mm (0.83")

Manufactured by: IDEC Corporation
Part Number: RH2V2-ULDC24V

Full Datasheet: IDEC RH Series Relay DPDT 10 Amp 24 Volt

RoHS Compliant
