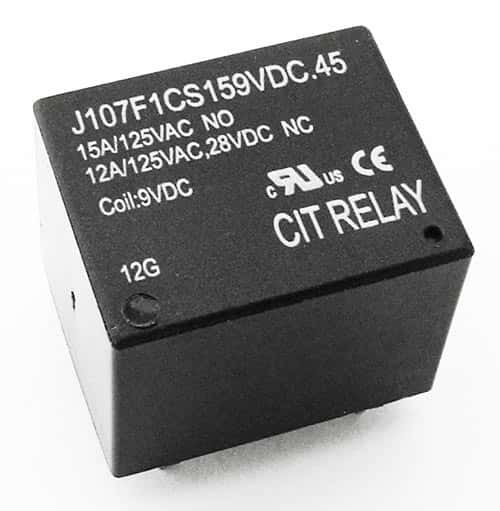

15A 9VDC SPDT Relay CIT J107F1CS159VDC.45

15A 9VDC SPDT Relay CIT J107F1CS159VDC.45

Manufacturer: CIT Relay & Switch®
Part Number: J107F1CS159VDC.45
Amps: 15
Voltage: 9
Voltage (Vac): 125
Watts: .45
Ohms: 180
Mounting: PCB / Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 4
Color: Black
Temperature: -55 to 125°C
Shape: Rectangle
Termination Method: Solder
Size (mm): 19 x 15.5 x 15.3

Price: $4.00
657 available for immediate delivery
Code: REL059APL05
Weight: 0.30oz ONZ
Volume Pricing
Quantity Price Each
1-99$4.00
100+$3.85
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

SPDT Sealed Relays

Features:
- UL F class rated standard
- Small size and light weight
- PC board mounting
- UL/CUL Certified

GENERAL DATA:
Electrical Life @ rated load: 100K cycles, typical
Mechanical Life: 10M cycles, typical
Insulation Resistance: 100MΩ min. @ 500VDC
Dielectric Strength:
- Coil to Contact 1500V rms min. @ sea level
- Contact to Contact 750V rms min. @ sea level
Shock Resistance 100m/s2 for 11 ms
Vibration Resistance 1.50mm double amplitude 10~40Hz
Operating Temperature -55°C to 125°C
Storage Temperature -55°C to 155°C
Solderability 260°C for 5 s

CONTACT DATA:
Arrangement: 1C (SPDT)
Resistance: <50 milliohms initial
Material: AgSnO2
Switching Power: 2500VA, 420W max.
Switching Voltage: 380VAC, 110VDC max.
Switching Current: 20A
Rating (printed on relay): 15A @ 125VAC N.O.
Rating (printed on relay): 12A/125VAC, 28VDC N.C.

COIL DATA
Voltage:
- Rated: 9VDC
- Maximum: 11.7
Resistance: 180 ohm +/- 10%
Pick up Voltage: 6.75VDC max
Release Voltage: 0.9VDC min.
Power: 0.45W
Operate Time: 10ms
Release Time: 5ms

Dimensions
Length: 19.0mm (0.75")
Width: 15.5mm (0.61")
Height: 15.3mm (0.60")

Manufactured by: CIT Relay & Switch®
Part Number: J107F1CS159VDC.45

Full Datasheet: CIT® Relay 9.0V 15A 0.45W
