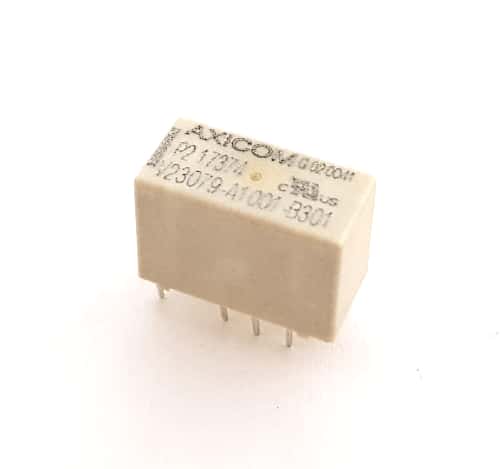

2A 5V PCB DPDT Low Signal Switching Relay Axicom® V23079A1001B301

2A 5V PCB DPDT Low Signal Switching Relay Axicom® V23079A1001B301

Manufacturer: Axicom®
Part Number: V23079A1001B301
Capacitance (uF): .000002
Amps: 2
Voltage: 5
Watts: .14
Ohms: 178
Mounting: Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 8
Color: Off White
Temperature: -40 to 85°C
RoHS Compliant: Yes
Shape: Rectangle
Termination Method: Solder
Size (mm): 14 x 7.2 x 9.9

Price: $3.00
51 available for immediate delivery
Code: REL083BPU02
Weight: 0.05oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

RF Low Signal Relays

DPDT (2 Form C)

Coil Data
Type: Non-Latching
Nominal Voltage: 5.0V
Nominal Power: 140mW
Resistance: 178 Ohms

Contact Data
Current Rating: 2.0A
Switching Current: 5.0A
Switching Voltage: 250VAC, 220VDC
Contact Resistance: 50 milliohms @ 10.0mA, 20.0mV

High Frequency Data
Capacitance:
- Between Open Contacts: 2.0pF max.
- Between Coil and Contacts: 1.5pF max.
- Between Poles: 1pF max.
RF Characteristics:
- Isolation: 20.7 db
- Insertion Loss: 0.27 db

Dimensions:
Length: 14.0mm (0.55")
Width: 7.2mm (0.28")
Height: 9.9mm (0.39")

Manufactured by: Axicom® (acquired by Tyco®)
Part Number: V23079A1001B301

Full Datasheet: Axicom® V23079 Series Miniature P2 Relay 2 Amp 5 Volt

RoHS Compliant
