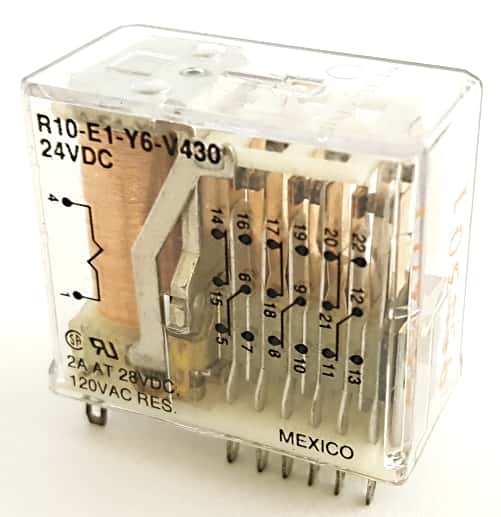

3.0A 24V 6PDT General Purpose Relay Potter & Brumfield R10-E1Y6-V430

3.0A 24V 6PDT General Purpose Relay Potter & Brumfield R10-E1Y6-V430

Manufacturer: Potter & Brumfield
Part Number: R10-E1Y6-V430
Amps: 3
Voltage: 24
Watts: 1.4
Ohms: 430
Mounting: Socket
Lead/Terminal Type: Quick Connect
Temperature: 75
Termination Method: Plug In

Price: $25.00
17 available for immediate delivery
Code: REL097APR04
Weight: 1.00oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

General Purpose Socket Relays
New Old Stock

Features:
- 6 Form C
- Non-Latching
- Plug-In Terminals with #3-48 mounting stud
- Dust Cover

Rated Coil Voltage: 24.0VDC
Operating Coil Volatage: 18.0V
Coil Resistance: 240 ohm
Coil Power: 1400mW
Contact Current (max): 3.0A
Switching Voltage: 120VAC, 30VDC - Max
Temperature: -55 to 75 Degrees C

Length: 34.93mm (1.38")
Height: 30.15mm (1.19")
Width: 18.67mm (0.74")

Applications:
- Coin changers
- Audio equipment
- Elevators
- Traffic controls
- Ultrasonic test equipment
- Parking toll readers

Manufactured by: Potter & Brumfield
Part Number: R10-E1Y6-V430

Full Datasheet: Plug In Non-Latching Relay3.0A 24.0V
