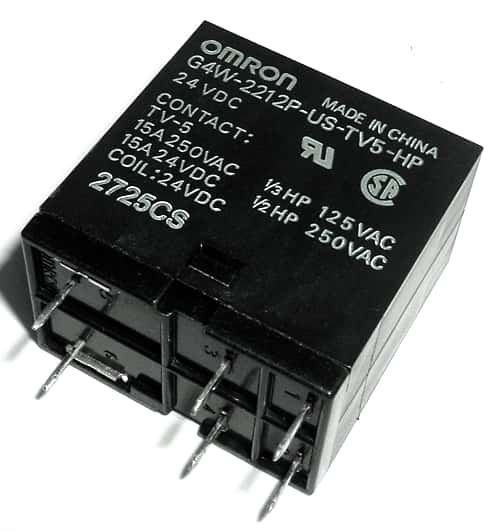

15A 24V PCB Mount High Power Relay DPST Omron­® G4W-2212P-US-TV5-HP-DC24

15A 24V PCB Mount High Power Relay DPST Omron­® G4W-2212P-US-TV5-HP-DC24

Manufacturer: Omron®
Part Number: G4W-2212P-US-TV5-HP-DC24
Amps: 15
Voltage: 24
Voltage (Vac): 250
Watts: .8
Mounting: PCB
Lead/Terminal Type: PCB Pin
Number Leads/Terminals: 6
Color: Black
Temperature: 55
Shape: Rectangle
Pitch (mm): 2.54
Termination Method: Solder

Price: $7.00
28 available for immediate delivery
Code: REL102APR05
Weight: 1.00oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Sealed General Purpose High Power Relays
DPST-NO (2 Form A)

Features:
- Impulse Withstand Voltage as High as 10 kV with 4-kV Dielectric Strength
- Ideal for Power Switching
- Creepage distance of 8 mm min. meets VDE C250
- DPST-NO types conform to TV-5 rating
- International 2.54-mm terminal pitch

Coil Voltage: 24.0V
Coil Current: 33.3mA
Coil Resistance: 720 Ohms
Power Consumption: 800mW
Rated Resistive Load (as printed on part): 15 A at 250 VAC; 15 A at 24 VDC
Contact Resistance: 30 milliohm (max.)
Operate Time: 20ms
Release Time: 5ms
Temperature: -25° to 55° C

Manufactured by: Omron®
Part Number: G4W-2212P-US-TV5-HP-DC24

Full Datasheet: Omron® General Purpose PCB Relay 15A 24V
