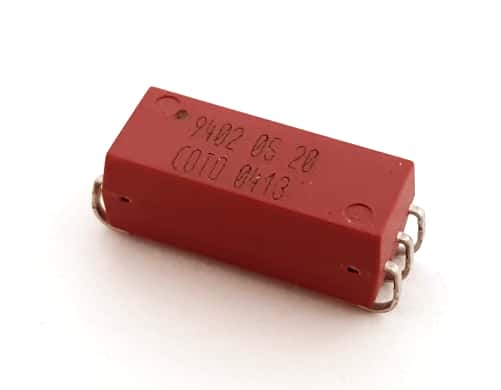

0.5A 5.0V Surface Mount Reed Relay Coto® 9402-05-20

0.5A 5.0V Surface Mount Reed Relay Coto® 9402-05-20

Manufacturer: Coto®
Part Number: 9402-05-20
Amps: .5
Voltage: 5
Watts: 10
Ohms: 200
Mounting: Surface Mount
Lead/Terminal Type: J Lead
Number Leads/Terminals: 6
Color: Red
Temperature: 85
Shape: Rectangle
Termination Method: Solder

Price: $8.00
158 available for immediate delivery
Code: REL103APS04
Weight: 0.10oz ONZ
Volume Pricing
Quantity Price Each
1-9$8.00
10+$7.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

SMT Reed Relays
1 Form A - SPST N.O.

Features:
- High Insulation Resistance
- High reliability, hermetically sealed contacts for long life
- Molded thermoset body on integral lead frame design
- High speed switching compared to electromechanical relays

Coil Specs:
Nom. Coil Voltage: 5.0V
Coil Resistance: 200 Ohm
Operate Voltage: 3.75V
Release Voltage: 0.4V

Contact Ratings:
Switching Voltage: 200V
Switching Current: 500mA (0.5A)
Carry Current: 1.0A
Contact Rating: 10.0W
Operating Temperature: -20 to 85°C

Dimensions:
Length: 14.0mm (0.5")
Width: 5.71mm (0.225")
Height: 5.03mm (0.20")

Manufactured by: Coto®
Part Number: 9402-05-20

Full Datasheet: Coto® 9402 Series SMD SPST-NO Reed Relay
