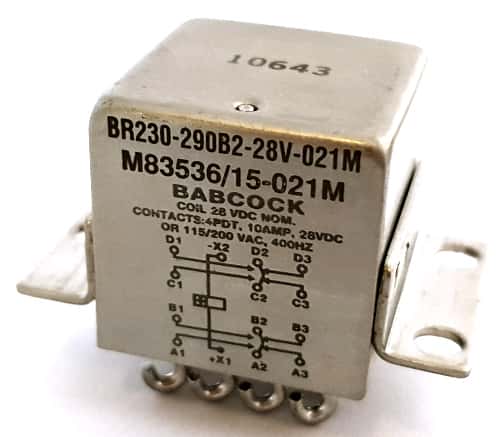

10A 25V 4PDT Vintage Relay MIL M83536/15-021M Babcock® BR230-290B2-28V-021M

10A 25V 4PDT Vintage Relay MIL M83536/15-021M Babcock® BR230-290B2-28V-021M

Manufacturer: Babcock®
Part Number: BR230-290B2-28V-021M / M83536/15-02M
Amps: 10
Voltage: 28
Voltage (Vac): 115
Watts: .5
Ohms: 390
Mounting: Flange
Lead/Terminal Type: Solder Hook
Number Leads/Terminals: 14
Color: Silver
Temperature: -70 to 125°C
Obsolete: Yes
Military Spec: Yes
Shape: Square
Termination Method: Solder
Size (mm): 26 x 26 x 26

Price: $180.00
8 available for immediate delivery
Code: REL111APU05
Weight: 2.50oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Military General Purpose Power Relays
New Old Stock-Vintage
1996 Date Code

CONTACT
Arangement: 4PDT (4 Form C)
Termination: Solder Hook
Current Rating:
- Resistive (@ 28 VDC or 115/208V 400 Hz): 10.0A
- Inductive (@ 28 VDC or 115/208V 400 Hz): 8.0A
Contact Bounce Time: 1.0ms

COIL
Non-Latching
Nominal Coil Voltage: 28.0V
Maximum Coil Voltage: 59.0V
Pull In Voltage (Max @ 25°C): 36.0V
Drop Out Voltage (Max):11.0V
Resistance: 890 Ohms

Pull In Power: 500mW
Switching Voltage: 115V AC / 28V DC
Operate/Release Time
DC Coil: 15.0ms
AC Coil: 50.0ms
Life: 100,000 Operations
Temperature: -70 to 125°C

Manufactured by: Babcock® (acquired by Microsemi®)
Part Number: BR230-290B2-28V-021M
Military Part Number: M3536/15-021M

Full Datasheet: Babcock® BR230 Series General Purpose Relay
