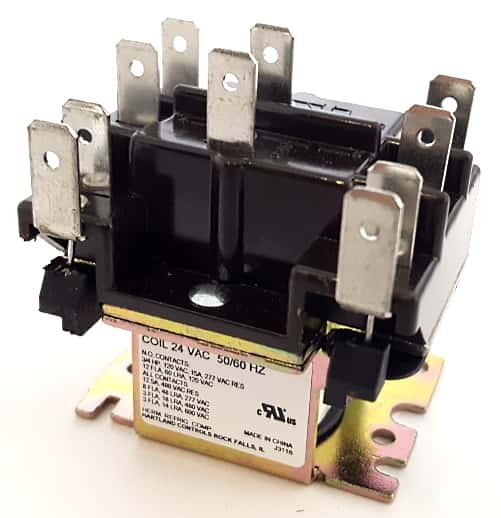

15A 24VAC DPDT HVAC Fan Relay Hartland Controls® HCRY62CQ1AA 90340

15A 24VAC DPDT HVAC Fan Relay Hartland Controls® HCRY62CQ1AA 90340

Manufacturer: Hartland Controls®
Part Number: HCRY62CQ1AA
Amps: 15
Voltage (Vac): 24
Ohms: 15
Mounting: Bracket
Lead/Terminal Type: Quick Connect
Number Leads/Terminals: 10
Color: Black
Temperature: 125

Price: $8.00
142 available for immediate delivery
Code: REL114APS08
Weight: 6.00oz ONZ
Volume Pricing
Quantity Price Each
1-19$8.00
20-49$7.50
50+$7.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

General Purpose Relays
Configuration: DPDT

Features:
- .250″ QC Terminals
- Bracket Mount
- Class B Insulation
- UL 508 File No. E227250

Nominal​ Coil Voltage: 24.0 VAC / 50/60Hz
Pick Up Voltage: 20.4 VAC
Drop Out Voltage: 4.8 VAC
Maximum Coil Voltage: 26.4 VAC
Nominal Coil Resistance: 15 Ohms
Nominal Coil Power (AC): 9.5VA
Temperature: -55 to 125°C

Applications:
- HVAC Systems
- Fans
- Standby Power Supplies
- Telephone Exchanges

Manufactured by: Hartland Controls®
Part Number: HCRY62CQ1AA
Cross #'s: 90340

Part #: HCR-6 Series
Full Datasheet: Hartland Controls® HCRY Series 24V AC DPDT Relay
