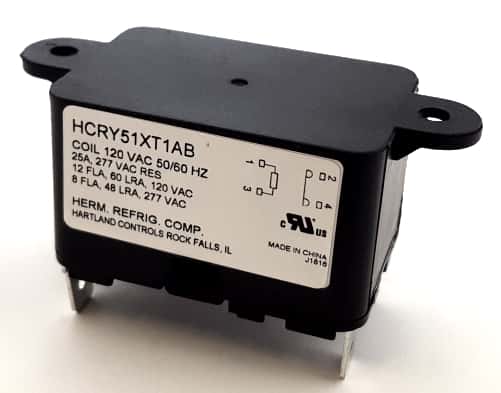

25A 120VAC SPST N.O. HVAC Relay Hartland Controls® HCRY51XT1AB 90291

25A 120VAC SPST N.O. HVAC Relay Hartland Controls® HCRY51XT1AB 90291

Manufacturer: Hartland Controls®
Part Number: HCRY51XT1AB
Amps: 25
Voltage (Vac): 120
Watts: 2.4
Ohms: 1800
Mounting: Tab
Lead/Terminal Type: Quick Connect
Number Leads/Terminals: 4
Color: Black
Temperature: 65
Shape: Rectangle

Price: $9.00
95 available for immediate delivery
Code: REL115APS08
Weight: 2.00oz ONZ
Volume Pricing
Quantity Price Each
1-19$9.00
20-50$8.75
51+$7.50
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$29.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

General Purpose Relays
Configuration: SPST - Normally Open

Features:
- Mounting Tabs
- Class B Insulation

Nominal​ Coil Voltage: 120 VAC / 50/60Hz
Pick Up Voltage: 102 VAC
Drop Out Voltage: 24 VAC
Power Rating: 25 Amps Resistive @ 277 VAC (SPST-NO)
Maximum Coil Voltage: 132 VAC
Nominal Coil Resistance: 1800 Ohms
Nominal Coil Power
- DC: 2.4W
- AC: 4.0VA
Temperature: -40 to 65°C

Dimensions:
Length (excluding mounting Tabs): 47.0mm (1.85")
Length (including mounting Tabs): 67.82mm (2.67")
Distance between mounting holes: (2.156")
Width: 31.8mm (1.25")
Body Height: 28.2 (1.11")
Overall Height: 38.1mm (1.50")

Applications:
- HVAC Systems
- Fans
- Standby Power Supplies
- Telephone Exchanges

Manufactured by: Hartland Controls®
Part Number: HCRY51XT1AB
Cross #'s: 90291

Part #: HCR Series
Full Datasheet: Hartland Controls® 120 V AC HCRY Series SPNO Relay
