15A 208 / 240 VAC HVAC Fan Relay Hartland Controls® HCRY62CU1AA 90342

15A 208 / 240 VAC HVAC Fan Relay Hartland Controls® HCRY62CU1AA 90342

Manufacturer: Hartland Controls®
Part Number: HCRY62CU1AA
Amps: 15
Voltage (Vac): 208 / 240
Mounting: Bracket
Lead/Terminal Type: Quick Connect
Number Leads/Terminals: 10
Color: Black
Temperature: 125

Price: $9.00
86 available for immediate delivery
Code: REL117APS08
Weight: 6.00oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

General Purpose Relays
Configuration: DPDT

Features:
- .250″ QC Terminals
- Bracket Mount
- Class B Insulation
- UL 508 File No. E227250
- Silver Cadmium Oxide Alloy Contacts
- Mechanical Life: 1,000,000
- Electrical Life: 250,000 (resistive) / 100,000 (inductive)

Nominal Coil Voltage: 208/240 VAC
Maximum Coil Voltage: 1600 VAC
Nominal Coil Resistance: 1600 Ohms

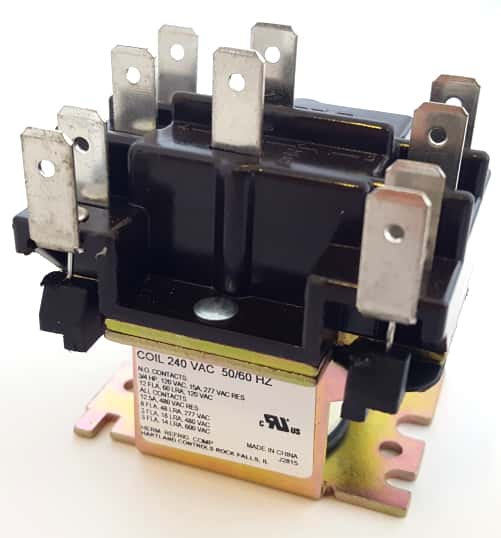

Part Markings:
Coil Voltage: 240 VAC 50/60Hz
N.O. Contacts:
- 3/4HP, 120VAC, 15A 277 VAC Res.
- 12FLA, 60 LRA, 120 VAC
All Contacts:
- 12.5A, 480 VAC Res.
- 8 FLA, 48 LRA, 277 VAC
- 3 FLA, 18 LPA, 480 VAC
- 3 FLA, 14 LRA, 6000 VAC

Temperature: -55 to 125°C

Applications:
- HVAC Systems
- Fans
- Standby Power Supplies
- Telephone Exchanges

Manufactured by: Hartland Controls®
Part Number: HCRY62CU1AA
Mars Cross #: 90342

Part #: HCR-6 Series
Full Datasheet: Hartland Controls® HCR-6 Series 208/240V AC DPDT Relay
