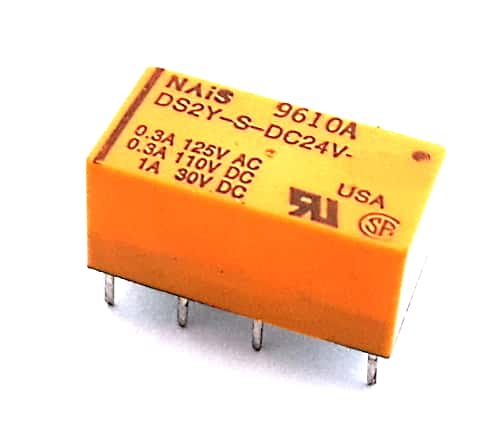

2A 24V Miniature Low Signal DPDT Relay NAIS® DS2Y-S-DC24V

2A 24V Miniature Low Signal DPDT Relay NAIS® DS2Y-S-DC24V

Manufacturer: NAIS®
Part Number: DS2Y-S-DC24V
Amps: 2
Voltage: 24
Watts: .2
Ohms: 2,880
Mounting: Through Hole
Lead/Terminal Type: PCB Pin
Number Leads/Terminals: 8
Color: Orange
Temperature: 70°C
Shape: Rectangle
Termination Method: Solder
Size (mm): 20 x 9.9 x 9.3

Price: $2.75
24 available for immediate delivery
Code: REL120APS12
Weight: 0.20oz ONZ
