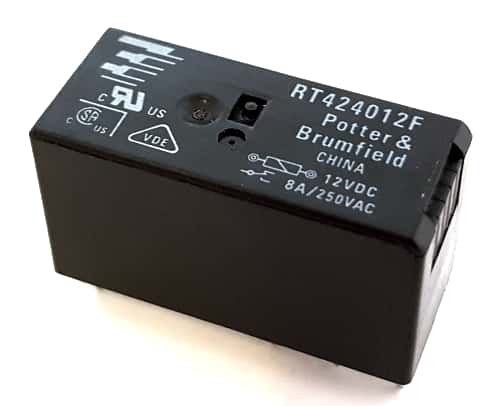

8A 12VDC 250VAC Power PCB Relay Potter & Brumfield® RT424012F

8A 12VDC 250VAC Power PCB Relay Potter & Brumfield® RT424012F

Manufacturer: Potter & Brumfield®
Part Number: RT424012F
Amps: 8
Voltage: 12
Voltage (Vac): 400
Watts: .4
Ohms: 360
Mounting: PCB / Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 8
Color: Black
Temperature: -40 to 85°C
Shape: Rectangle
Termination Method: Solder
Size (mm): 29 x 12.7 x 15.7

Price: $4.00
447 available for immediate delivery
Code: REL123APT10
Weight: 0.45oz ONZ
Volume Pricing
Quantity Price Each
1-99$4.00
100+$3.50
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

General Purpose Power PCB Relays
DPDT (2 Form C)
Non-Latching
Sealed-Flux Protection

Contact Data
Rated Current: 8.0A
Rated Voltage: 250VAC
Switching Voltage: 400VAC
Breaking Capacity (max.): 2000VA
Operate Time: 8.0ms
Release Time: 6.0ms

Coil Data
Voltage
- Rated: 12.0Vdc
- Must Operate: 8.4Vdc
- Must Release: 1.2Vdc
Resistance: 360 Ohms
Power: 400mW
Current: 33.3mA

Dimensions:
Length: 29.0mm (1.14")
Width: 12.7mm (0.50")
Height: 15.7mm (0.618")

Manufactured by: Potter & Brumfield® (TE Connectivity)
Part Number: RT424012F

Full Datasheet: Potter & Brumfield® RT2 Series General Purpose Relays 8A 12V
