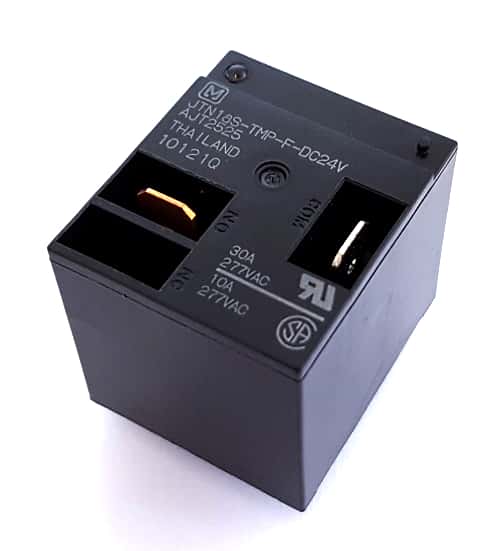

30A 24V SPST-NO Power Relay Sealed Panasonic® JTN1AS-TMPFDC24V

30A 24V SPST-NO Power Relay Sealed Panasonic® JTN1AS-TMPFDC24V

Manufacturer: Panasonic®
Part Number: JTN1AS-TMPFDC24V
Amps: 30
Voltage: 24
Voltage (Vac): 277
Watts: .8
Ohms: 720
Mounting: PCB
Lead/Terminal Type: PC Pin / Quick Connect
Color: Black
Temperature: -55 to 85°C
RoHS Compliant: Yes
Obsolete: Yes
Termination Method: Solder
Size (mm): 32.2 x 27.4 x 27.9

Price: $5.00
12 available for immediate delivery
Code: REL125APU03
Weight: 1.00oz ONZ
