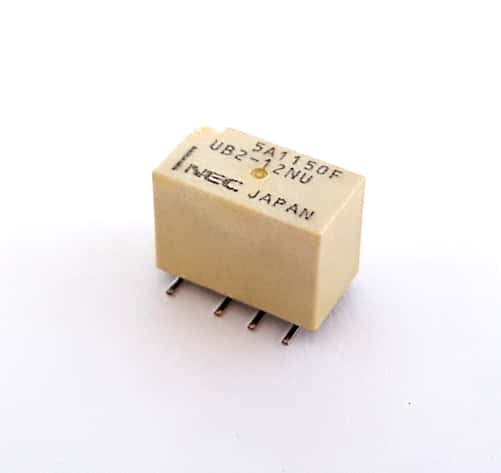

1A 12Vdc Miniature SMT Low Signal Relay DPDT NEC® UB2-12NU

1A 12Vdc Miniature SMT Low Signal Relay DPDT NEC® UB2-12NU

Manufacturer: NEC®
Part Number: UB2-152NU
Amps: 1
Voltage: 12
Watts: .14
Mounting: Surface Mount
Lead/Terminal Type: Gullwing
Number Leads/Terminals: 8
Color: Off White
Temperature: -40 to 85°C
RoHS Compliant: Yes
Shape: Rectangle
Termination Method: Solder
Size (mm): 10.6 x 5.7 x 8

Price: $1.75
120 available for immediate delivery
Code: REL126APU03
Weight: 0.03oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Mini Surface Mount PCB Signal Relays
DPDT-NO,NC (2 Form C)
Non-Latching

Contact
Max. Switching Current: 1.0A
Max. Carry Current: 1.0A
Max. Switching Power: 30.0W (resistive)
Max. Switching Voltage: 37.5 VA (resistive)

Coil
Nominal Voltage: 12.0V
Resistance: 1028 Ohms
Must Operate Voltage: 9.0V
Must Release Voltage: 1.2V
Nom. Operating Power: 140mW

Dimensions:
Length: 10.6mm (0.42")
Width: 5.7mm (0.22")
Height: 8.0mm (0.31")

Manufactured by: NEC®
Part Number: UB2-12NU

Full Datasheet: NEC® UB2 Series SMD Relay 1 Amp 12 Volt

RoHS Compliant
