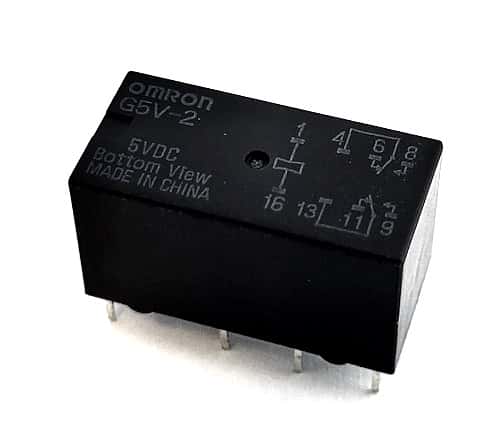

2A 5V DPDT Miniature PCB Low Signal Relay Omron® G5V-2-5VDC

2A 5V DPDT Miniature PCB Low Signal Relay Omron® G5V-2-5VDC

Manufacturer: Omron®
Part Number: G5V-2-5VDC
Amps: 2
Voltage: 5
Voltage (Vac): 125
Watts: .5
Mounting: Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 8
Color: Black
Temperature: -25 to 65°C
Shape: Rectangular
Termination Method: Solder
Size (mm): 20.3 x 10.1 x 11.5

Price: $3.00
50 available for immediate delivery
Code: REL155APV08
Weight: 0.20oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

PCB Mount Standard Low Signal Relays
DPDT

Features:
- Fully-sealed construction
- Non-Latching
- Capable of switching loads 10μA to 2 A
- Conforms to FCC part 68 1,500 V surge withstand
- Reliable Ag + Au-clad, bifurcated crossbar contacts

Rated Load (marked on part)
- 0.6A @ 125 VAC
- 0.6A @ 110 VDC
- 2.0A @ 30 VDC
Rated Voltage: 5.0V
Rated Coil Current: 100mA
Coil Resistance: 50Ω
Coil Inductance
- Armature OFF: 0.09H
- Armature ON: 0.11H
Power Consumption: 500mW
Carry Current: 2.0A
Max. Operating Voltage: 125V AC/DC
Contact Resistance: 50 milliohm
Operate Time (max): 7ms
Insulation Resistance: 1000 Megohm
Temperature: -25 to 65°C

Dimensions:
Length: 20.3mm (0.80")
Width: 10.1mm (0.40")
Height: 11.5mm (0.45")

Manufactured by: Omron®
Part Number: G5V-2-5VDC

Full Datasheet: Omron® G5V-2 Series Mini Signal Relay 2 Amp 5 Volt
