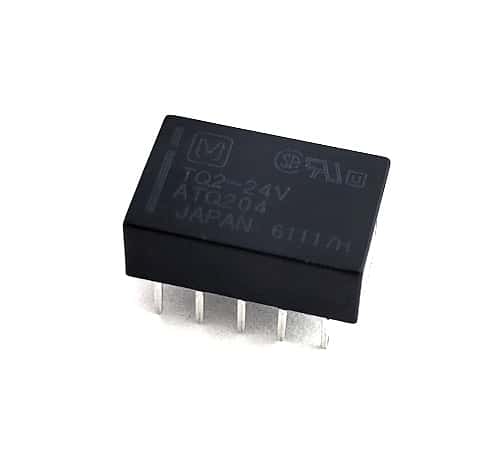

1A 24V DPDT PCB Telecom Low Signal Relay Panasonic® TQ2-24V

1A 24V DPDT PCB Telecom Low Signal Relay Panasonic® TQ2-24V

Manufacturer: Panasonic®
Part Number: TQ2-24V
Amps: 1
Voltage: 24
Watts: .2
Ohms: 2880
Mounting: Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 10
Color: Black
Temperature: -40 to 70°C
RoHS Compliant: Yes
Shape: Rectangular
Pitch (mm): 2.54
Termination Method: Solder
Size (mm): 14 x 9 x 5

Price: $2.25
25 available for immediate delivery
Code: REL161APV08
Weight: 0.05oz ONZ
