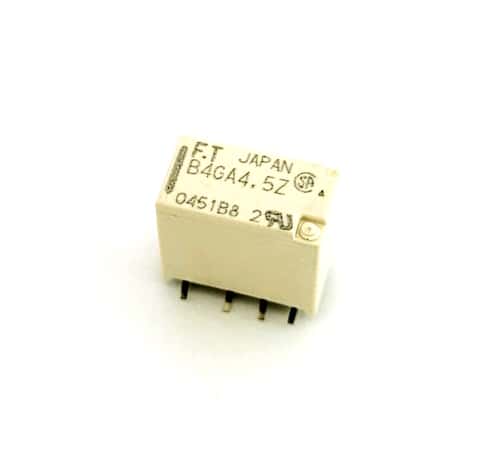

2A 4.5V SMT DPDT Low Signal Relay Fujitsu® FTR-B4GA4.5Z

2A 4.5V SMT DPDT Low Signal Relay Fujitsu® FTR-B4GA4.5Z

Manufacturer: Fujitsu®
Part Number: FTR-B4GA4.5Z
Amps: 2
Voltage: 4.5
Voltage (Vac): 125
Watts: .14
Ohms: 145
Mounting: Surface Mount
Number Leads/Terminals: 8
Color: Off-White
Temperature: -40 to 85°C
Shape: Rectangular
Termination Method: Solder
Size (mm): 10.6 x 5.7 x 9.7

Price: $2.00
246 available for immediate delivery
Code: REL171APV08
Weight: 0.04oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Surface Mount Low Signal Relay
DPDT (NO, NC) - 2 Form C

Features
- Miniature Size
- Slim / Low Profile
- Non-Latching
- Bifurcated Contact (cross-bar)
- Low Power Consumptiion

CONTACT
Contact Rating (Resistive)
- 1.0A @ 30.0Vdc
- 0.3A @ 125Vac
Carry Current: 2.0A
Switching Power (max): 62.5 VA / 30W
Switching Voltage (max): 250 VAC/ 220 VDC

COIL
Voltage: 4.5V
Resistance: 145 Ω
Nominal Power: 140mW
Temperature: -40 to 85°C

Dimensions
Length: 10.6mm (0.42")
Width: 5.7mm (0.22")
Height (above board): 9.7mm (0.38")

Manufactured by: Fujitsu®
Part Number: FTR-B4GA4.5Z

Full Datasheet: Fujitsu® FTR-B4 Series Mini SMD Signal Relay 2A 4.5VDC
