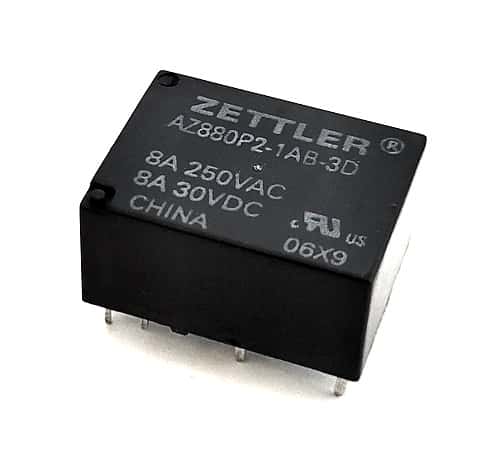

8A DPST / 10A SPST 3V Polarized Power Relay American Zettler® AZ880P2-1AB-3D

8A DPST / 10A SPST 3V Polarized Power Relay American Zettler® AZ880P2-1AB-3D

Manufacturer: American Zettler®
Part Number: AZ880P2-1AB-3D
Amps: 8
Voltage: 3 (Coil)
Ohms: 32.1
Mounting: Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 8
Material: PBT
Color: Black
Temperature: -40 to 70°C
Obsolete: Yes
Shape: Rectangular
Termination Method: Solder
Size (mm): 20 x 15 x 10.2

Price: $5.50
49 available for immediate delivery
Code: REL177APV09
Weight: 0.20oz ONZ
