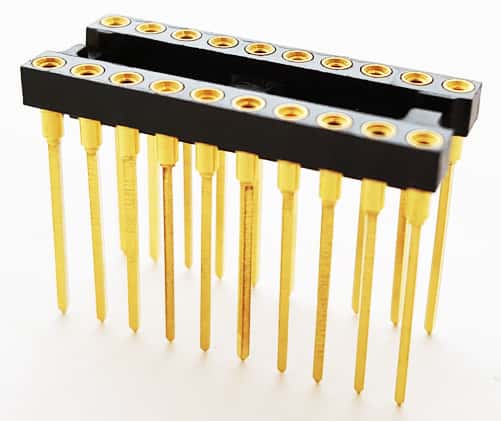

20 Pin Wire Wrap Machine IC Socket Gold Plated Mill-Max® 123-13-320-001100

20 Pin Wire Wrap Machine IC Socket Gold Plated Mill-Max® 123-13-320-001100

Manufacturer: Mill-Max®
Part Number: 123-13-320-001100
Amps: 3
Mounting: Through Hole
Lead/Terminal Type: Wire Wrap
Number Leads/Terminals: 20
Material: Thermoplastic
Color: Black
Temperature: 125
Shape: Rectangle
Row Spacing (mm): 7.62
Pitch (mm): 2.54
Frame Type: Open
Size (mm): 25.3 x 10.1 x 2.79

Price: $2.00
Sorry, we are currently sold out of
'20 Pin Wire Wrap Machine IC Socket Gold Plated Mill-Max® 123-13-320-001100'.
Please check back later.
Code: S016BPD12
Volume Pricing
Quantity Price Each
1-9$2.00
10-99$1.93
100+$1.82
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

20 Position Wire Wrap Dip IC Sockets

Features:
- 3 Level Wrapost
- Gold Plated Contacts and Leads
- 3.0A Contact Current Rating

Solderless wrapost terminals are firmly locked in the insulator body to withstand torque of the wrapping tool.

Materials:
Insulator: Thermoplastic
Post: Brass Alloy
Contact: Beryllium Copper

Insulator Dimensions:
Length: 25.3mm (1.0")
Width: 10.1mm (0.397")
Thickness: 2.79mm (0.109")
Pitch: 2.54mm (0.1")
Row Space: 7.62mm (0.30")
Lead Length: 12.96mm (0.51")
Height Above Board: 4.11mm (0.16")

Manufactured by: Mill-Max®
Part Number: 123-13-320-001100

Full Datasheet: Mill-Max® 123 Series 20 Pos. Dip IC Socket

RoHS Compliant
