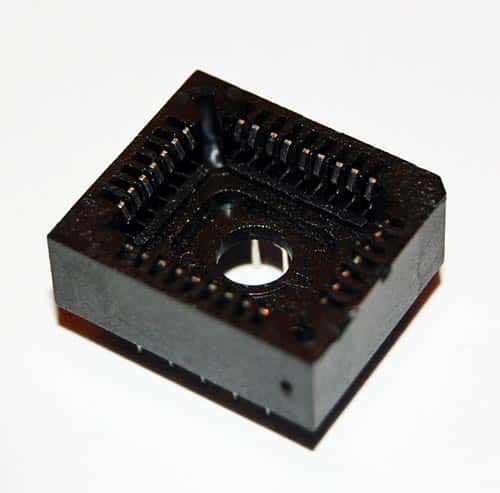

32 Pin PLCC IC Socket Through Hole Mil-Max 540-99-032-24-000

32 Pin PLCC IC Socket Through Hole Mil-Max 540-99-032-24-000

Manufacturer: Mil-Max
Part Number: 540-99-032-24-000
Package: PLCC
Lead/Terminal Type: Through Hole
Number Leads/Terminals: 32
Material: Plastic
Color: Black
Shape: Rectangle
Pitch (mm): 1.27
Termination Method: Solder Tail
Frame Type: Closed

Price: $1.49
150 available for immediate delivery
Code: SK041APH01
Weight: 0.11oz ONZ
Volume Pricing
Quantity Price Each
1-9$1.49
10-99$1.39
100+$1.29
