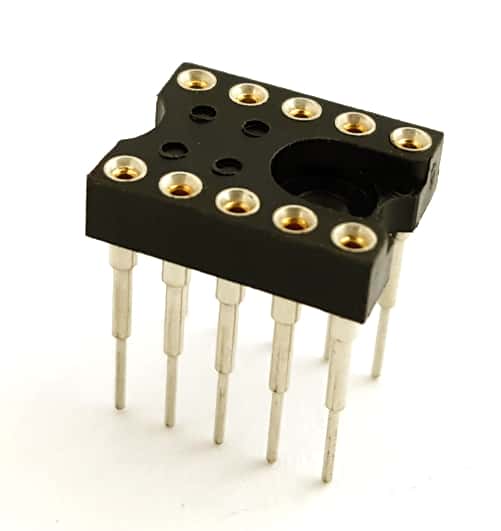

10 Pin Machine IC Socket Elevated Long Pins Samtec® ICS-310-EGT

10 Pin Machine IC Socket Elevated Long Pins Samtec® ICS-310-EGT

Manufacturer: Samtec®
Part Number: ICS-310-EGT
Amps: 1 @ 100Vdc
Voltage (Vac): 1000Vrms @ 60Hz
Ohms: 10mohm @ 200mA
Mounting: Through Hole
Lead/Terminal Type: Elevated
Number Leads/Terminals: 10
Color: Black
Temperature: 125
RoHS Compliant: Yes
Obsolete: Yes
Shape: Rectangle
Row Spacing (mm): 7.62
Pitch (mm): 2.54
Termination Method: Solder
Frame Type: Closed

Price: $0.40
3582 available for immediate delivery
Code: SK057APS02
Weight: 0.20oz ONZ
Volume Pricing
Quantity Price Each
1-99$0.40
100+$0.30
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

10 Pin Dip Machine IC Sockets
Elevated Leads
OBSOLETE

Material:
Glass Filled Polyester Insulator
Gold Plated Contact
Tin Plated Leaads

Withstanding Voltage: 1000Vrms @ 60Hz
Current Rating: 1.0A Continuous @ 100Vdc per Contact
Contact Resistance: 10 milliohms @ 200mA
Operating Temperature: -55 to 125°C

Dimensions:
Length: 13.97mm (0.55")
Width: 10.16mm (0.40")
Thickness: 3.18mm (0.125")
Overall Lead Length: 10.0mm (0.39")

Manufactured by: Samtec®
Part Number: ICS-310-EGT

Full Datasheet: Samtec® ICS Series Machined DIP IC Sockets 10 Pins

RoHS Compliant
