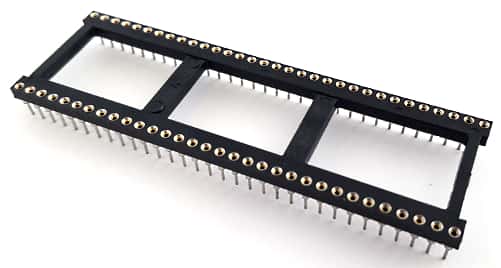

64 Pin Open Frame Machined IC Socket Augat® 864-AG12D-ES

64 Pin Open Frame Machined IC Socket Augat® 864-AG12D-ES

Manufacturer: Augat®
Part Number: 864-AG12D-ES
Capacitance (uF): .000001
Amps: 3
Voltage: 1000 RMS
Ohms: .01
Package: Dip
Mounting: Through Hole
Number Leads/Terminals: 64
Material: Thermoplastic
Color: Black
Temperature: 105
Shape: Rectangle
Row Spacing (mm): 22.86
Pitch (mm): 2.54
Termination Method: Solder
Frame Type: Open
Size (mm): 81.28 x 25.4 x 2.67

Price: $4.00
406 available for immediate delivery
Code: SK069APS09
Weight: 0.20oz ONZ
