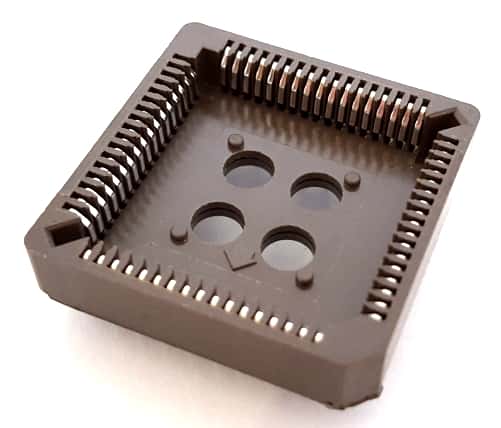

68 Pin PLCC IC Socket Through Hole Winslow Adaptics® WPLCC0681T

68 Pin PLCC IC Socket Through Hole Winslow Adaptics® WPLCC0681T

Manufacturer: Winslow Adaptics®
Part Number: WPLCC0681T
Amps: 1
Voltage: 150
Voltage (Vac): 100 VRMS
Package: PLCC
Mounting: Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 68
Material: Polyester (PCT)
Color: Brown
Temperature: 105
Shape: Square
Pitch (mm): 2.54
Termination Method: Solder
Size (mm): 31.04 x 31.04 x 6.46

Price: $0.50
214 available for immediate delivery
Code: SK078APS10
Weight: 0.30oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

68 Position PLCC IC Socket

Using IC sockets is advisable on boards with point to point wiring because replacing a defective IC is time consuming and can possibly damage your prototype board. The use of an IC socket is inexpensive compared to the time and effort required to replace an IC chip. IC sockets also reduce the possibility of damaging the board when swapping out IC's.

Materials:
Insulator: Glass Filled Polyester (PBT)
Contacts: Phosphor bronze
Plating: Tin

Contact Rating: 1.0A
Voltage Rating: 150VDC / 100VRMS AC
Contact Resistance: 30 milliohms
Operating Temperature: -55 to 105°C

Outer Dimensions: 31.04mm x 31.04mm x 6.46mm (1.22" x 1.22" x 0.25")
Pitch: 2.54mm (0.10")

Manufactured by: Winslow Adaptics®
Part Number: WPLCC0681T

Full Datasheet: Winslow Adaptics® 68 Pos. Through Board PLCC Socket
