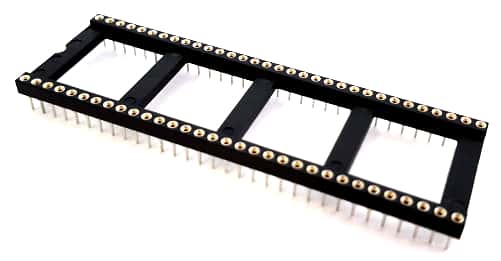

64 Pin Dip Machine IC Socket Low Profile Preci-Dip® 110-83-964-41-001101

64 Pin Dip Machine IC Socket Low Profile Preci-Dip® 110-83-964-41-001101

Manufacturer: Preci-Dip®
Part Number: 110-83-964-41-001101
Amps: 1
Voltage: 150
Voltage (Vac): 100
Ohms: .01
Package: Dip
Mounting: Through Hole
Lead/Terminal Type: Solder Tail
Number Leads/Terminals: 64
Material: Glass Filled Polyester PCT-GF30-FR
Color: Black
Temperature: -55 to 125°C
RoHS Compliant: Yes
Shape: Rectangle
Row Spacing (mm): 22.86
Pitch (mm): 2.54
Termination Method: Solder
Frame Type: Open
Size (mm): 81.2 x 25.4 x 2.9

Price: $4.00
129 available for immediate delivery
Code: SK091BPU11
Weight: 0.20oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Open Frame Machined IC Sockets
64 Positions
Open Frame
Solder Tail

Contact Current Rating: 1.0 A
Contact Resistance: 10 milliohm
Working Voltage: 100 VRMS/150 VDC
Operating Temperature: -55 to 125°C

Insertion Force: 2 N typ.
Withdrawal Force: 1 N typ
Mechanical Life: 100

Insulator Dimensions:
Length: 81.2mm (3.196")
Width: 25.3mm (1.0")
Height: 2.9mm (0.114")
Row Space: 22.86mm (0.90")
Pitch: 2.54mm (0.10")

Manufactured by: Preci-Dip®
Part Number: 110-83-964-41-001101

Full Datasheet: Preci-Dip® Series 110 64 Contacts DIL Sockets

RoHS Compliant
