Tact Switch 12V 6mm APEM MJTPSMW MJTP

Tact Switch 12V 6mm APEM MJTPSMW MJTP

Manufacturer: Apem
Part Number: MJTPSMW

Price: $0.50
2107 available for immediate delivery
Code: SW085
Volume Pricing
Quantity Price Each
1-49$0.50
50-99$0.48
100+$0.45
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$29.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

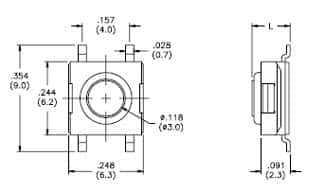

Ultra-compact 6mm SMD Tact Switch
Long operating life for high reliability
Molded in terminals minimize wicking of flux or solder

Contact form: SPST Contact rating: 50mA @ 12VDC
Insulation resistance: 100M ohms min (100VDC)
Dielectric withstanding voltage: 250VAC for 1 minute
Contact resistance: 100 milliohms max @ 5 VDC, 10mA
Electrical life: 100,000 cycles min
Contact bounce: less than 10 msec
Plunger travel: 0.10"+ 0.008", +.004"
Actuation force: 160 grams +/-30 grams
Operating temp range: -20�C to +70�C
Storage temp range: -30�C to +80�C for 96 hours
Shock resistance: 30G per method 213, MIL-STD-202
Vibration resistance: passes method 201, MIL-STD-202

Materials:
Case: High temp 4/6 nylon
Actuator: High temp 4/6 nylon
Cover/bracket: PET film, tin plated brass or stainless steel
Terminals: Silver plated brass
LED rating: Forward voltage 2.1V (3V max); Cont fwd current: 20mA max @ 25�C

Full Datasheet MJTPSMW

Manufactured by: Apem
Part Number: MJTPSMW
Series: MJTP
