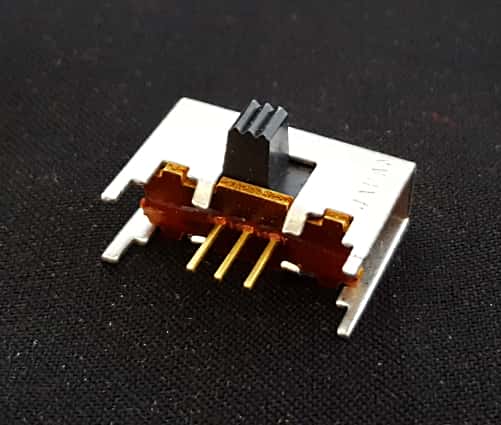

Slide Switch 0.4VA 20V SPDT Right Angle Alcoswitch® MSS-1200RG

Slide Switch 0.4VA 20V SPDT Right Angle Alcoswitch® MSS-1200RG

Manufacturer: Alco®
Part Number: MSS-1200RG
Amps: .4
Voltage: 20
Ohms: .02
Mounting: Right Angle
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 3
Color: Silver / Black
Temperature: -20 to 85°C
RoHS Compliant: Yes
Termination Method: Solder

Price: $1.00
821 available for immediate delivery
Code: SW108PD
Volume Pricing
Quantity Price Each
1-9$1.00
10-99$0.95
100+$0.90

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Ricght Angle Slide Switches
Instrumentation Grade
MSS Series
2 Position
On /On
Single Pole Double Throw
Life Expectancy: 15K Cycles

Specifications:
Contact Rating: 0.4 VA 20 VDC or peak AC
Initial Contact Resistance: 20 Milliohms max
Insulation Resistance: 1000MΩ min.
Dielectric Strength: 500VAC
Operating Temperature: -20 to 85°C

Contacts:
- Material: Gold Plated
- Initial Resistance: 20mΩ max.
- Timing: Make before Break

Termination:
- Type: PC
- Mount Angle: Right
- Mount Style: Through-Hole
- Configuration: Standard

Actuator:
- Style: Side
- Color: Black
- Material: POM-UL94HB
- Force: 100 to 600 Grams
- Travel: 0.079 in (2.01mm)
- Length: 0.157 in (3.99mm)

Manufactured by: Alcoswitch® (Tyco®)
Part number: MSS-1200RG

Full datasheet: MSS-1200RG

RoHS Compliant
