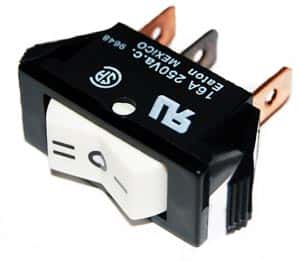

Rocker Switch 16A 250VAC SPDT 1604-12E Eaton®

Rocker Switch 16A 250VAC SPDT 1604-12E Eaton®

Manufacturer: Eaton®
Part Number: 1604-12E
Amps: 16
Voltage (Vac): 250
Mounting: Snap In
Lead/Terminal Type: Quick Connect
Number Leads/Terminals: 3
Color: Black / White
Temperature: 0 to 85°C
Shape: Rectangular
Size (mm): 27.18 x 12.05 x 24.95

Price: $1.75
1330 available for immediate delivery
Code: SW113PD
Volume Pricing
Quantity Price Each
1-9$1.75
10-99$1.65
100+$1.50
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

SPDT Panel Mount Rocker Switches

Features:
- Non-Illuminated
- 50,000 Cycles
- On-Off-On

Ratings
UL/CSA:
- 16A 125–250 Vac
- 10A 28 Vdc
- 8A 14VT
ENEC:
- 10(2)A 250V
Temperature: 0 to 85°C

Dimensions:
Panel Thickness: 0.75 to 3.0mm (0.03" x 0.118")
Panel Cut Out
Length: 27.3mm (1.075")
Width: 12.27mm (0.483")

Switch (including terminals)
Length: 27.18mm (1.07")
Width: 12.05mm (0.474")
Height: 24.95mm (0.982")
Terminal Length: 10.73mm (0.422")

Manufactured by: Eaton®
Part Number: 1604-12E

Full Datasheet: Eaton® 1600 Series Rocker Switches 16 Amp
