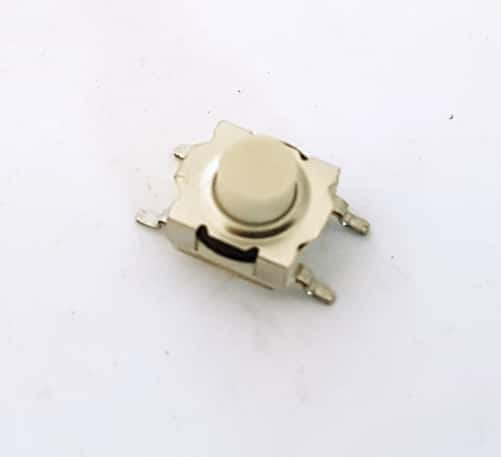

Tact Switch 50V C and K KT Series KT11P2SM

Tact Switch 50V C and K KT Series KT11P2SM

Manufacturer: C & K
Part Number: KT11P2SM
Voltage: 50
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 4

Price: $2.00
200 available for immediate delivery
Code: SW125PE03
Volume Pricing
Quantity Price Each
1-9$2.00
10-99$1.85
100+$1.60

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Sealed Tactile Switches
Surface Mount Gullwing

Description / Additional Information

Features:
- Internal actuator seal and insert molded terminals-permit soldering and cleaning
- Tin-lead plated terminals�improves solderability

Specs:
SPST
Contact Rating: 1.0VA max. @ 50VAC or DC max.
Mechanical & Electrical life: 100,000 Make or Break Cyles @ Full load
Contact Resistance: Below 50milliohms typ. initial @ 2-4 V DC, 100 mA.
Insulation Resistance: 10^9 ohms min.
Dielectric Strength: 250V RMS min. @ sea level

Materials:
Housing: Stainless Steel
Actuator: Nylon
Movable Contacts: Stainless Steel, Silver Plated
Stationary Contacts: Copper Alloy, Silver Plate over Nickel
Terminals: Copper Alloy with Tin-Lead Alloy over Nickel Plate
Seal: Silicone Rubber

Dimensions:
6.22mm x 6.38mm
Actuator Height: 2.36mm (.093")

Applications:
- Telecommunications
- Computer Products
- Instrumentation

Manufactured by: C and K (ITT Cannon)
Part Number: KT11P2SM

Full Datasheet: KT11P2SM
