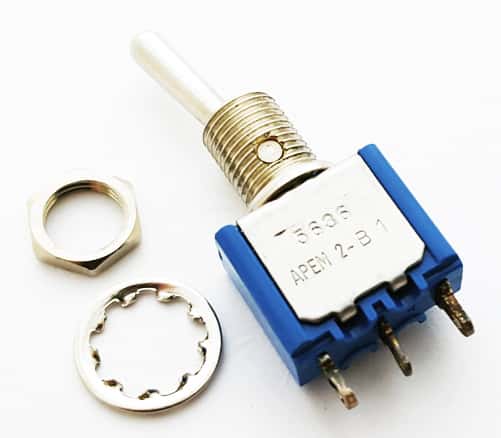

Toggle Switch Miniature SPDT 6A 125VAC 4A 30VDC APEM 5636A

Toggle Switch Miniature SPDT 6A 125VAC 4A 30VDC APEM 5636A

Manufacturer: Apem®
Part Number: 5636A
Amps: 6
Voltage: 30
Voltage (Vac): 125
Mounting: Panel Mount
Lead/Terminal Type: Solder Lug
Number Leads/Terminals: 3
Color: Blue
Temperature: -40 to 85°C
RoHS Compliant: Yes
Termination Method: Solder

Price: $4.00
976 available for immediate delivery
Code: SW169APN07
Weight: 0.10oz ONZ
Volume Pricing
Quantity Price Each
1-99$4.00
100+$3.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Mini Toggle Switches
5000 Series
Switch Operation: ON-ON

Features:
- SPDT
- Solder Lug Terminals
- Threaded Bushing
- Silver Contacts

Electrical Specifications
Current/voltage rating with resistive load
Contact
- Maximum: 3A 250VAC - 6A 125VAC - 4A 30VDC
- Minimum: 50mA 10VDC
Initial contact resistance: 10 milliohm max.
Insulation resistance: 1.0megohm min. A 500VDC
Contact bounce: 2ms
Electrical life at full load: 50,000 cycles
Low level or mechanical life: 100,000 cycles
Operating Temperature: -40 to 85 deg. C

Max. Dimensions:
Overall Height: 35.0mm (1.38")
Body Height: 12.0mm (0.47")
Body Width: 13.2mm (0.52")
Body Thickness: 7.0mm (0.28")
Toggle Length: 10.5mm (0.41")

Manufactured by: APEM
Part Number: 5636A

Full Datasheet: 4.0A 30VDC ON-ON APEM Toggle Switches

RoHS Compliant
