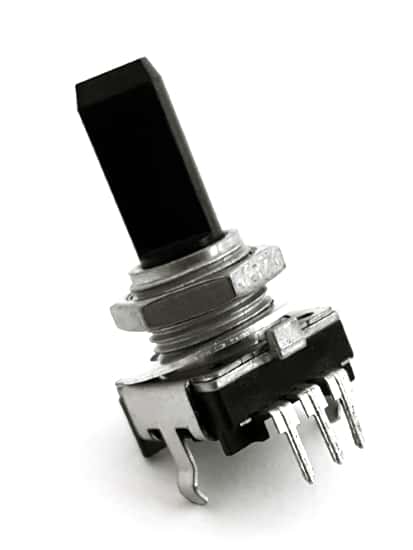

Encoder Switch 12mm Square Barling GS Encoder Panasonic® EVE-GA1 Series

Encoder Switch 12mm Square Barling GS Encoder Panasonic® EVE-GA1 Series

Manufacturer: Panasonic®
Part Number: EVE-GA1 Series
Amps: .001
Voltage: 5
Ohms: 1
Mounting: PCB
Lead/Terminal Type: PCB Pin
Number Leads/Terminals: 3
Color: Silver / Black
Temperature: 60
Obsolete: Yes
Shape: Square
Size (mm): 12

Price: $3.00
69 available for immediate delivery
Code: SW192APR06
Weight: 0.10oz ONZ
