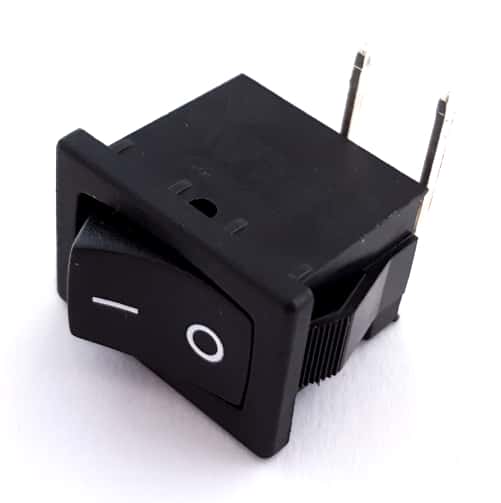

Rocker Switch 15A 125Vac SPST Right Angle E-Switch® R1966ABLKBLKFR

Rocker Switch 15A 125Vac SPST Right Angle E-Switch® R1966ABLKBLKFR

Manufacturer: E-Switch®
Part Number: R1966BLBLKFR
Amps: 15
Voltage (Vac): 125
Mounting: Snap In
Lead/Terminal Type: PC Pin, Right Angle
Number Leads/Terminals: 2
Color: Black
Temperature: -30 to 65°C
RoHS Compliant: Yes
Shape: Rectangle
Pitch (mm): 7
Termination Method: Solder
Size (mm): 20.8 x 14.8 x 16

Price: $1.75
93 available for immediate delivery
Code: SW212APU04
Weight: 0.10oz ONZ
Volume Pricing
Quantity Price Each
1-9$1.75
10+$1.60
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Panel Mount Rocker Switches
SPST, On-Off
Right Angle, Snap In
Approvals: UR, cUR

Contact Rating
- 15.0A @ 125VAC
- 8A @ 250VAC
Electrical Life: 10,000 cycles
Mechanical Life: 30,000 cycles
Insulation Resistance: >1000 Megohm
Dielectric Strength (1 min): 1,500VAC
Operating Temperature: -30°C to 65°C

Panel Thickness Range: 0.7mm to 3.0mm (0.03" to 0.12")
Panel Cutout (T=1.25-2.0mm): 19.3mm x 12.9mm (0.759" x 0.507")

Body Dimensions
Length: 20.8mm (0.82")
Width: 14.8mm (0.58")
Depth: 16.0mm (0.63)

Manufactured by: E-Switch®
Part Number: R1966ABLKBLKFR

Full Datasheet: E-Switch® R1966 Series RA Snap In Rocker Switch

RoHS Compliant
