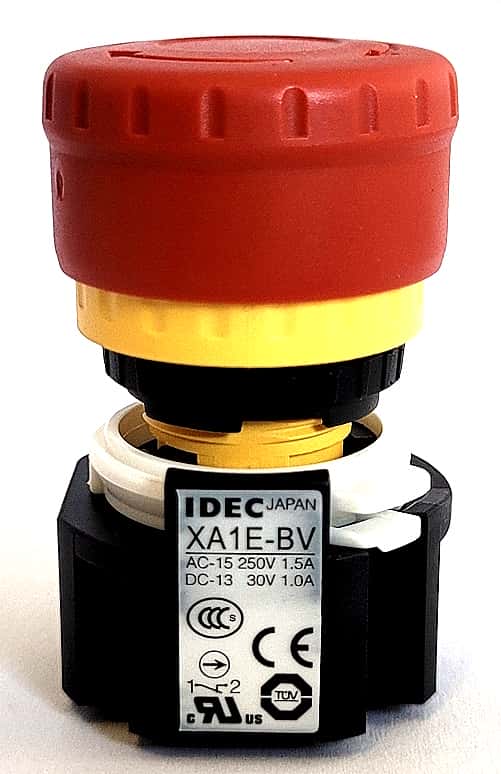

XA1E-BV302R Emergency Stop Switch DPDT 3A 250VAC/DC IDEC®

XA1E-BV302R Emergency Stop Switch DPDT 3A 250VAC/DC IDEC®

Manufacturer: IDEC®
Part Number: XA1E-BV302R
Amps: 3
Voltage: 250
Voltage (Vac): 250
Mounting: Panel Mount
Lead/Terminal Type: Solder Lug
Number Leads/Terminals: 4
Color: Red / Yellow / Black
Temperature: -25 to 60°C
Termination Method: Solder
Size (mm): 29

Price: $35.00
7 available for immediate delivery
Code: SW228APV08
Weight: 0.80oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Panel Mount Emergency Stop Switches

Features:
- Round Mushroom Actuator
- IP65 Rated
- 2 NC Main Contacts
- Push-to-lock, Pull or Turn-to-reset operator
- NC contacts open when the contact block is detached from the operator.
- Safety lock mechanism (IEC60947-5-5, 6.2)

Switch Fuction: On - OFF
Mechanical Life (min): 250,000 Operations
Electrical Life (min): 100,000 Operations
Operating Force
- Push-to-Lock: 10.5N
- Pull-to-reset: 10.0N
- Turn-to-reset: 0.16N
Current Rating: 3.0A
Voltage Rating: 250 VAC / 250VDC
Operating Temperature: –25 to +60°C (no freezing)

Dimensions
Overall Length: 46.4mm (1.83")
Actuator Diameter: 29.0mm (1.14")
Panel Cutout: 16.0mm (0.63")

Manufactured by: IDEC®
Part Number: XA1E-BV302R

Full Datasheet: IDEC® XA1E Series E-Stop Switch Push/Pull
