2N4401 600mA 40V NPN Silicon Power Transistor

2N4401 600mA 40V NPN Silicon Power Transistor

Manufacturer: Motorola or Rohm
Part Number: 2N4401
Amps: .6
Voltage: 40
Watts: .625

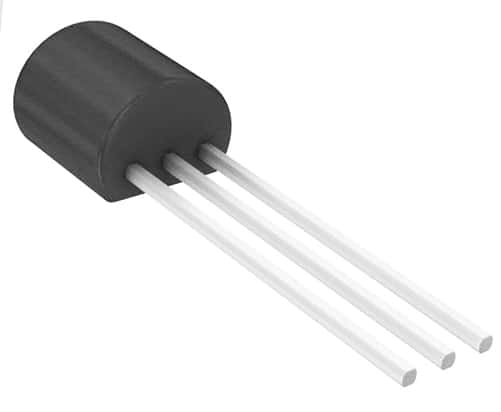

Package: TO-92
Mounting: Through Hole
Lead/Terminal Type: Straight
Number Leads/Terminals: 3
Color: Black
Temperature: 150
Termination Method: Solder

Price: $0.10
1612 available for immediate delivery
Code: T152BPQ05
Weight: 0.01oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

NPN General Purpose Switching Transistors
Medium Power

Voltage
-Collector−Emitter: 40.0V
- Collector−Base Voltage: 60.0V
- Emitter −Base Voltage: 6.0V
Collector Current − Continuous: 600mA
Total Device Power Dissipation
- TA @ 25 deg. C: 625mW
- TC @ 25 deg. C: 1.5W
Collector Output Capacitance (VCB=10V, f=100kHz): 6.5pF
Transistion Frequency (VCE=10V, IE=−20mA, f=100MHz): 250MHz
Operating Junction Temperature Range: -55 to 150 Deg. C.

Manufactured by: Mixed (Motorola or Rohm)
Part Number: 2N4401

Full Datasheet: Motorola 0.06A 40V NPN Transistor 2N4401
Full Datasheet: Rohm 0.06A 40V NPN Transistor 2N4401
