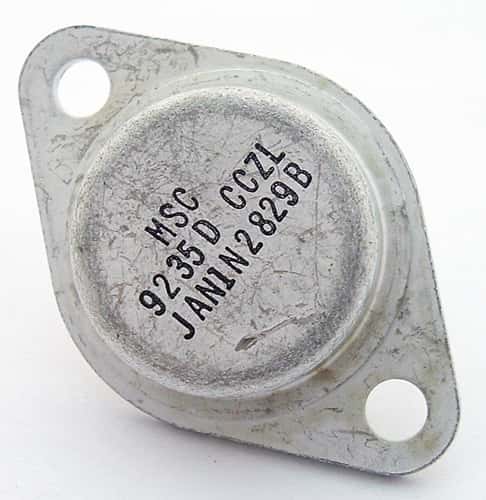

1N2829B JAN1N2829B 50W Zener Military Diode

1N2829B JAN1N2829B 50W Zener Military Diode

Manufacturer: Microsemi
Part Number: 1N2829B
Package: TO-3
Military Spec: Yes

Price: $45.50
15 available for immediate delivery
Code: T299PE11
Volume Pricing
Quantity Price Each
1-9$45.50
10+$42.30

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Zener Military Diodes
TO-3 Package

FEATURES/BENEFITS
- JEDEC registered 1N2804 thru 1N2846B and 1N4557 thru 1N4564B
- Internal solder bond construction
- Hermetically sealed (welded)
- Standard polarity is anode to case
- Regulates voltage over a broad operating current and temperature range
- Nonsensitive to ESD per MIL-STD-750 Method 1020

TYPICAL ELECTRICAL CHARACTERISTICS (TA=25 deg. C unless otherwise noted):
Nominal Zener Voltage: 47.0V
Zener Test Current: 270mA
Max. Zener Impedance @ 270mA: 5.0Ω
Zener Knee Impedance @ 5mA: 100Ω
Max. DC Zener Current @ 75 deg. C: 980mA
Typical Zener Voltage Temp Coefficient: .090%/deg. C
Maximum Leakage Current: 10.0uA @ 35.8V

Manufactured by: MicroSemi
Part Number: JAN1N2829B

Full Datasheet: JAN1N2829B
